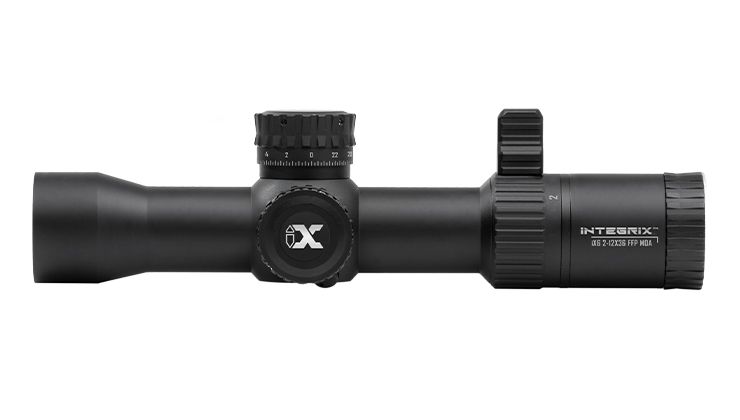

INTEGRIX iX6 2-12X36 34mm FFP Mid Power Scope, A2 MOA

SKU

iX602FA2

Coming Soon

THE CULMINATION OF INTEGRATED & INTELLIGENT OPTICAL DESIGN & MANUFACTURING.

INTEGRIX is pinnacle performance. Years of experience were brought to the forefront through expert development and evaluation, countless testing, and meticulous manufacturing. German and Japanese glass lenses used exclusively in every INTEGRIX optic are individually centration tested, multi-coated for glare, reflection, and scratch resistance, and upon assembly are inspected for concentricity as a whole.

THE END RESULT? Optimized image quality with over 92% light transmission, edge-to-edge sharpness, minute distortion, and high contrast resolution.

$1,299.97

Out of stock

Notify me when the price drops

Notify me when this product is in stock

Details

Individually Centration Tested German and Japanese Glass, Concentric Tested Post Assembly
Multi-Coated Lenses for Glare, Reflection, and Scratch Resistance
Low Aberration Optimized Image Quality with Over a 92% Light Transmittance
Edge to Edge Sharpness, High Contrast, and High-Resolution Standard
Reliable Adverse Temperature and Environmental Performance with -40° to 160° Fahrenheit Operational Range and IPX7 Waterproof Rating
Rated, at Minimum, for .338 LAPUA Magnum
Red and Green Reticle Illumination with 8 Brightness Intensity Settings
12 Hour Automatic Shutoff
Side Adjustable Parallax Turret Smoothly and Accurately Adjusts from 30 Yards / 27.4 m to Infinity
Intuitive Lockable and Zero Resettable Windage and Elevation Turrets, Serrated and Oversized for Glove Use
Serrated Power Ring and Rear Adjustable Eyepiece Diopter
Make Transitioning Across Magnification Range Effortless with Included Oversized Throw Lever

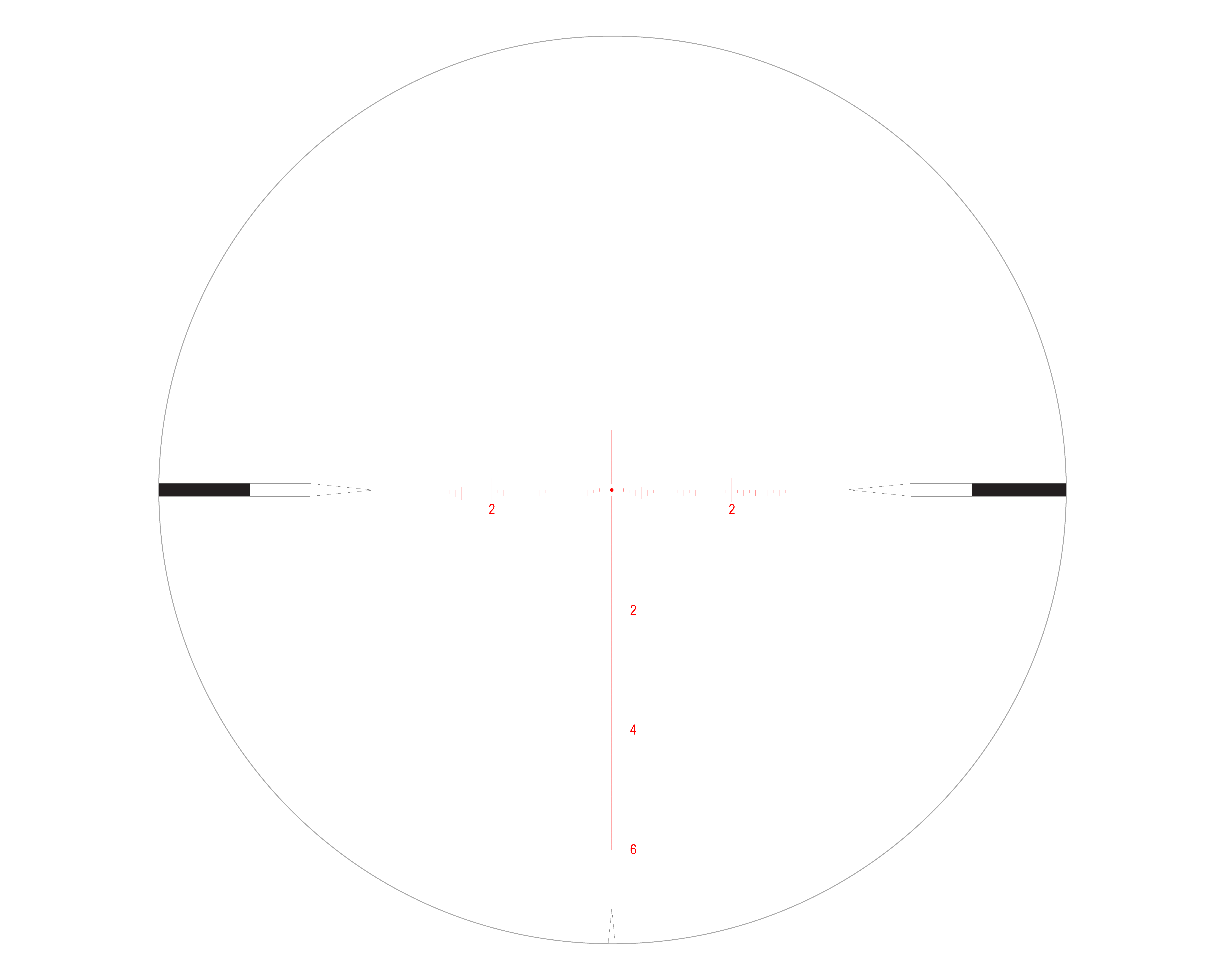

ETCHED GLASS A2 MOA RETICLE

Clutter-free at both low and high magnifications to supplement overall FOV qualities, the German Duplex inspired A2 MOA reticle features sub-tensions that transition from being bolded to see-through while tapering down to a fine point towards the reticle’s center. The center crosshair, at low magnification, provides a quick-to-acquire T-Dot and fully illuminates.
The T-Dot at higher magnification opens up and provides an unobtrusive 0.5 MOA floating center dot which focuses the eyes to the center of the reticle and frees up space between it and the remainder of the reticle to provide a better view of critical target details. The reticle spans 10 MOA up and 60 MOA down and 30 MOA left and right in 1 MOA increments.

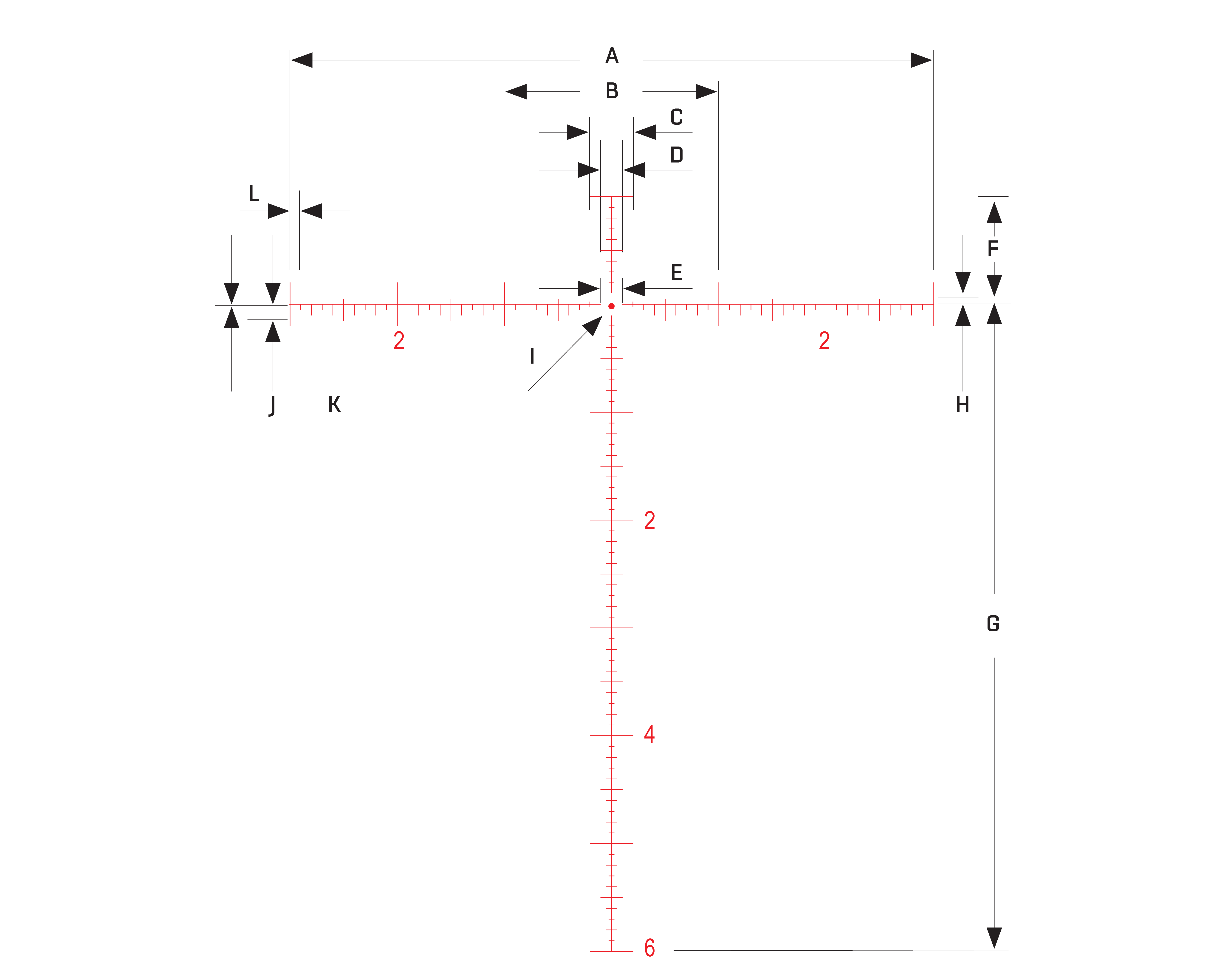

RETICLE BREAKDOWN

UNIT	A	B	C	D
MOA	60	20	4	2

UNIT	E	F	G	H
MOA	2	10	60	0.5

UNIT	I	J	K	L
MOA	0.5	1.5	0.125	1

ACCESSORIES INCLUDED

Sunshade
Throw Lever
Flip-open Lens Caps
Hex Wrench 2 mm
Hex Wrench 1.5 mm
CR2032 Battery
Cleaning Cloth

RESOURCES

INTEGRIX BOOKLET

Specifications

More Information
Length (in)	10.75
Maintube Diameter (mm/in)	34 mm
Objective Length (in)	1.77
Objective Length (mm)	45
Eyepiece Length (in)	3.46
Eyepiece Length (mm)	88
Front Mounting Space (in)	1.81
Front Mounting Space (mm)	46
Rear Mounting Space (in)	2.01
Rear Mounting Space (mm)	51
Outer Objective Bell Diameter (in)	1.81
Outer Eyepiece Diameter (in)	1.81
Outer Eyepiece Diameter (mm)	46
922R Compliant	No
Warranty	Lifetime
Materials	6061-T6 Aluminum
Color(s)	Black
Parts Included	Lens Cover, User Manual
Focal Plane	FFP (First Focal Plane)
Reticle	A2 MOA
Reticle Type	Etched Glass
Reticle Illumination	Yes
Reticle Color(s)	Red and Green
Illumination Toggle Type	Button
Brightness Settings	8
Brightness Mode(s)	Manual
Waterproof Rating	IPX7
Operating Temperature High (⁰F)	160
Operating Temperature Low (⁰F)	-40
Operating Temperature High (⁰C)	70
Operating Temperature Low (⁰C)	-40
Ballistic Drop Compensation	No
Range Estimation	No
Battery Loading	Left Side Turret
Battery Type	CR2032 3V
Click Value @ 100 Yards (MOA)	1/4
Windage Adjustment Left (MOA)	12
Windage Adjustment Right (MOA)	12
Windage Adjustment Per Revolution (MOA)	24
Elevation Adjustment Up (MOA)	60
Elevation Adjustment Down (MOA)	30
Magnification Max.	12
Magnification Min.	2
Angular FOV Low Mag. (Degrees)	10.9
Angular FOV High Mag. (Degrees)	1.8
Linear FOV Low Mag. (ft @ 100 yds)	57.2
Linear FOV High Mag. (ft @ 100 yds)	9.4
Linear FOV Low Mag. (m @ 100 m)	19.1
Linear FOV High Mag. (m @ 100 m)	3.1
Light Transmission (%)	92%
Eye Relief (in)	3.94
Eye Relief (mm)	100
Parallax Control	Left Side Adjustable Turret
Parallax Max (yds)	Infinity
Parallax Max (m)	Infinity
Parallax Min (yds)	10
Parallax Min (m)	9.1
Exit Pupil High Mag. (mm)	3
Exit Pupil Low Mag. (mm)	10
Objective Lens Diameter (mm)	36
Diopter Adjustment	+3D ~ +2D
Diopter Type	Friction Secured
Caliber Rating	.338 Lapua Magnum
Weight (oz)	28.2
Weight (g)	800

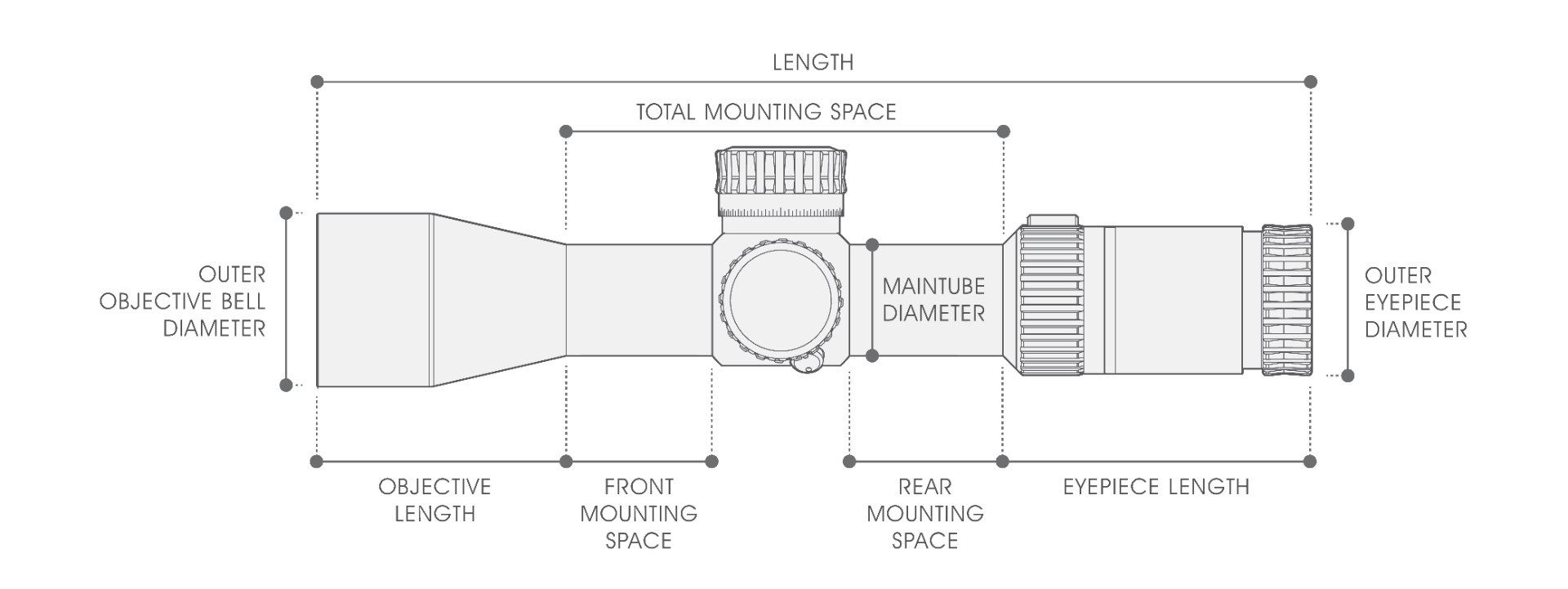

Dimensions

Eyepiece Length (in)	3.46
Eyepiece Length (mm)	88
Front Mounting Space (in)	1.81
Front Mounting Space (mm)	46
Length (in)	10.75
Maintube Diameter (mm/in)	34 mm
Objective Length (in)	1.77
Objective Length (mm)	45
Outer Eyepiece Diameter (in)	1.81
Outer Eyepiece Diameter (mm)	46
Outer Objective Bell Diameter (in)	1.81
Rear Mounting Space (in)	2.01
Rear Mounting Space (mm)	51

LEAPERS LIFETIME WARRANTY

Leapers, Inc. warrants that all products conform to published specifications and are free from defects in material and workmanship. Leapers, Inc. will repair or replace, at our discretion, a defective product for the duration of the product’s lifespan. Verification through an RA number is required. In the event of a product being discontinued, credit in the amount of the product’s MSRP may be offered.
