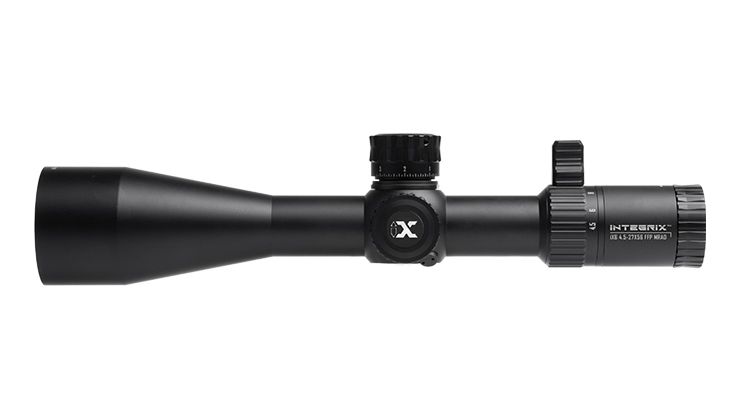

INTEGRIX iX6 4.5-27x56 34mm FFP LR/ELR Scope, M1 MRAD

SKU

iX645FM1

Coming Soon

THE CULMINATION OF INTEGRATED & INTELLIGENT OPTICAL DESIGN & MANUFACTURING.

INTEGRIX is pinnacle performance. Years of experience were brought to the forefront through expert development and evaluation, countless testing, and meticulous manufacturing. German and Japanese glass lenses used exclusively in every INTEGRIX optic are individually centration tested, multi-coated for glare, reflection, and scratch resistance, and upon assembly are inspected for concentricity as a whole.

THE END RESULT? Optimized image quality with over 92% light transmission, edge-to-edge sharpness, minute distortion, and high contrast resolution.

$2,199.97

Out of stock

Notify me when the price drops

Notify me when this product is in stock

Details

Individually Centration Tested German and Japanese Glass, Concentric Tested Post Assembly
Multi-Coated Lenses for Glare, Reflection, and Scratch Resistance
Low Aberration Optimized Image Quality with Over a 92% Light Transmittance
Edge to Edge Sharpness, High Contrast, and High-Resolution Standard
Reliable Adverse Temperature and Environmental Performance with -40° to 160° Fahrenheit Operational Range and IPX7 Waterproof Rating
Rated, at Minimum, for .338 LAPUA Magnum
Red and Green Reticle Illumination with 8 Brightness Intensity Settings
12 Hour Automatic Shutoff
Side Adjustable Parallax Turret Smoothly and Accurately Adjusts from 30 Yards / 27.4 m to Infinity
Intuitive Lockable and Zero Resettable Windage and Elevation Turrets, Serrated and Oversized for Glove Use
Serrated Power Ring and Rear Adjustable Eyepiece Diopter
Make Transitioning Across Magnification Range Effortless with Included Oversized Throw Lever

ETCHED GLASS M1 MRAD RETICLE

A tried-and-true MRAD Reticle made for true marksmen looking to challenge themselves at ranges most could not reach. 12 Mils of holdovers broken into .2 Mil increments for exact shot placement. Four Mils of hold-under for that prairie dog that pops up a little close and a 1 Mil section of .1 Mil increments for fine measuring, if you know you know. Twenty-four Mils of wind holds on the main horizontal stadia includes 2 Mils of .1 Mil increments on both sides.
Do not be afraid to have fun in the wind with up to 4.5 Mils of wind holds. Finally, if you feel like just dialing, a 0.05 Mil dot for your center hold will prove to be the precise aiming point needed to hit your mark. The center hold and one Mil of the crosshairs are the only parts of the M2 MRAD reticle that illuminates.

RETICLE BREAKDOWN

UNIT	A	D	E	F	G	H	I
MOA	24	0.05	0.1	0.1	0.15	0.4	0.03

UNIT	J	K	L	M	N	O	P
MOA	12	0.2	0.1	9	0.4	0.2	0.5

UNIT	Q	R	S	T	U	V	W
MOA	0.05	1.5	1	0.1	0.2	0.5	1

UNIT	B
INCH @ 400 YARDS	18

UNIT	C
INCH @ 1000 YARDS	18

ACCESSORIES INCLUDED

Throw Lever
Flip-open Lens Caps
Hex Wrench 2 mm
Hex Wrench 1.5 mm
CR2032 Battery
Cleaning Cloth

RESOURCES

PRODUCT SPEC SHEET

INTEGRIX BOOKLET

Specifications

More Information
Length (in)	13.98
Maintube Diameter (mm/in)	34 mm
Objective Length (in)	4.84
Objective Length (mm)	123
Eyepiece Length (in)	3.46
Eyepiece Length (mm)	88
Front Mounting Space (in)	1.97
Front Mounting Space (mm)	50
Rear Mounting Space (in)	1.97
Rear Mounting Space (mm)	50
Outer Objective Bell Diameter (in)	2.56
Outer Eyepiece Diameter (in)	1.81
Outer Eyepiece Diameter (mm)	46
922R Compliant	No
Warranty	Lifetime
Materials	6061-T6 Aluminum
Color(s)	Black
Parts Included	Lens Cover, User Manual
Focal Plane	FFP (First Focal Plane)
Reticle	M1 MRAD
Reticle Type	Etched Glass
Reticle Illumination	Yes
Reticle Color(s)	Red and Green
Brightness Settings	8
Brightness Mode(s)	Manual
Waterproof Rating	IPX7
Operating Temperature High (⁰F)	160
Operating Temperature Low (⁰F)	-40
Operating Temperature High (⁰C)	70
Operating Temperature Low (⁰C)	-40
Ballistic Drop Compensation	No
Range Estimation	Yes
Battery Loading	Left Side Turret
Battery Type	CR2032 3V
Click Value @ 100 Yards (MIL)	0.1
Click Value @ 100 Meters (MIL)	0.11
Windage Adjustment Left (MIL)	4
Windage Adjustment Right (MIL)	4
Windage Adjustment Per Revolution (MIL)	8
Elevation Adjustment Up (MIL)	16
Magnification Max.	27
Magnification Min.	4.5
Angular FOV Low Mag. (Degrees)	4.8
Angular FOV High Mag. (Degrees)	0.8
Linear FOV Low Mag. (ft @ 100 yds)	25.1
Linear FOV High Mag. (ft @ 100 yds)	4.2
Linear FOV Low Mag. (m @ 100 m)	8.4
Linear FOV High Mag. (m @ 100 m)	1.4
Light Transmission (%)	92%
Eye Relief (in)	3.94
Eye Relief (mm)	100
Parallax Control	Left Side Adjustable Turret
Parallax Max (yds)	Infinity
Parallax Max (m)	Infinity
Parallax Min (yds)	30
Parallax Min (m)	27.4
Exit Pupil High Mag. (mm)	2.1
Exit Pupil Low Mag. (mm)	11
Objective Lens Diameter (mm)	56
Diopter Adjustment	+3D ~ +2D
Diopter Type	Friction Secured
Caliber Rating	.338 Lapua Magnum
Weight (oz)	35.1
Weight (g)	996

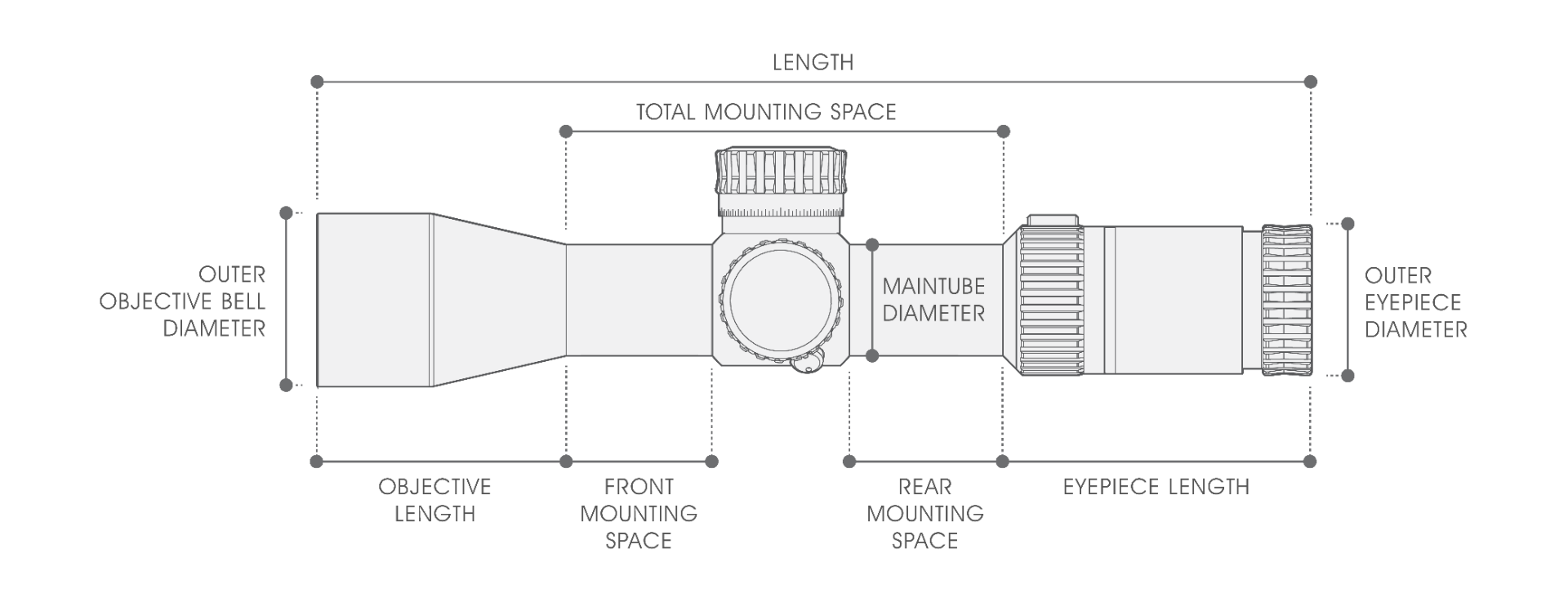

Dimensions

Eyepiece Length (in)	3.46
Eyepiece Length (mm)	88
Front Mounting Space (in)	1.97
Front Mounting Space (mm)	50
Length (in)	13.98
Maintube Diameter (mm/in)	34 mm
Objective Length (in)	4.84
Objective Length (mm)	123
Outer Eyepiece Diameter (in)	1.81
Outer Eyepiece Diameter (mm)	46
Outer Objective Bell Diameter (in)	2.56
Rear Mounting Space (in)	1.97
Rear Mounting Space (mm)	50

LEAPERS LIFETIME WARRANTY

Leapers, Inc. warrants that all products conform to published specifications and are free from defects in material and workmanship. Leapers, Inc. will repair or replace, at our discretion, a defective product for the duration of the product’s lifespan. Verification through an RA number is required. In the event of a product being discontinued, credit in the amount of the product’s MSRP may be offered.
