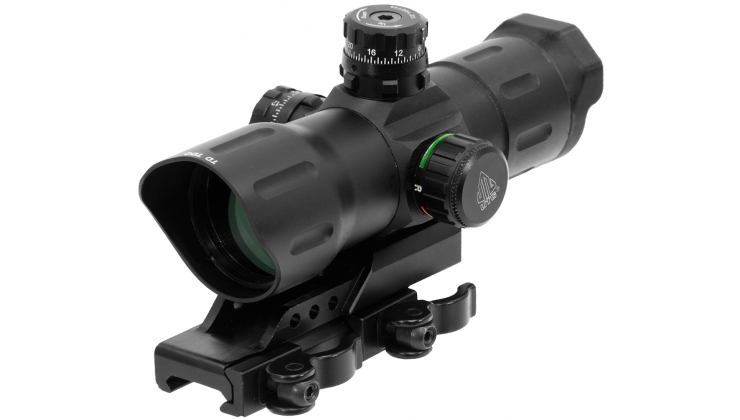

UTG 6" ITA Red/Green CQB T-dot Sight with Offset QD Mount

SKU

SCP-TDTDQ

In stock

$99.97

Notify me when the price drops

Details

Built on TRUE STRENGTH® Platform to Offer Durability and Precision Adjustment; Completely Sealed, Shockproof, Fogproof and Rainproof
Unlimited Eye Relief and Intuitive, Quick-to-Acquire Red/Green T-dot Reticle for Swift Execution of T-Zone and Center Mass Hits
Premium Zero Lockable and Zero Resettable Target Turrets with Most Consistent, Precise and Reliable 1/2 MOA per Click Adjustment and Zero Hold Capability
42mm Center Height for 1/3 Co-witness of Front and Rear Iron Sights
TactEdge® Angled Integral Sunshade Reduces Glare Off the Lens While Maintaining Superb Light Transmission Clarity
Complete with Lens Covers and QD Dual Lever Lock Bidirectional Offset Mount that Frees Up Flat Top Real Estate for Magnifiers, Rear Sights and Other Accessories
US PAT. 8397421

T-DOT RETICLE

The T-dot reticle is ideally used for fast center mass and T-zone aiming applications where getting shots on target quickly is a priority. The reticle consists of a single floating dot in the center as the aiming point with three floating posts arranged at the dot’s 3,6, and 9 O’clock positions. It may be permanently etched on glass or formed by light reflection. The posts are very quickly picked up by the eye, framing your target, while the single dot provides precision aiming of the area of interest on the target.

INNOVATIVE TRUE STRENGTH TS PLATFORM

History, development, & technology

TS, as in True Strength®, is the signature scope construction platform of Leapers UTG® optics. As the name suggests, no matter if it's a full size or compact scope, magnifier or dot sight, we aim to achieve the highest dependability starting at the heart of our scopes' structure. The research and development of this innovative structure was initiated in 2001 and in 2002 the first TS Platform scope was put into mass production. With our continuous testing, verification, and multiple rounds of improvement, we started promoting and selling TS optics on a global scale in 2005. Today, all our optics are built on the tough TS Platform to include a one-piece integral aluminum main tube, meticulously placed reinforcements at key structural points, and nitrogen purging to achieve optimal rainproof, fogproof, and shockproof performance even in the most challenging of scenarios. This superior TS Platform has even been adopted into the lineup of UTG® laser products, giving them precise and secure adjustment.

SMART SPHERICAL STRUCTURE

The Smart Spherical Structure (SSS) is one of the most significant characteristics of the TS Platform.
SSS simulates the human joint structure to achieve the utmost precision and reliability.
The erector tube is constrained via a ball and socket structural relationship, which provides the desirable flexibility to respond to windage and elevation adjustments and the optimal ability to hold zero under heavy recoil.

TRUE STRENGTH® PLATFORM

Reduces and Absorbs Recoil, Alleviating Potential Loss of Zero
Fully Tested on Both Air Rifles and Firearms
TS Technology Implemented in Every Leapers Scope

ADVANCED RECOIL PROOF SYSTEM

The Most Advanced and User-friendly Windage and Elevation Adjustment System with Innovative Design, Precision Components, and Disciplined Assembly
UTG®'s Leaf Spring System is Made from a Special Heat Treated Beryllium Bronze Alloy to Maintain Reliable and Consistent Long Term Tension
ACCUSHOT® Models Equipped with a Rugged Coil Erector Return Spring System For Improved Zero Hold Under Heavy Recoil and Greater Windage/Elevation Adjustment Range

ACCESSORIES INCLUDED

CR1620 3V High Energy Lithium Battery
Lens Cover
M5x10 Phillips Screw
Cleaning Cloth
Spring Washer
Flat Washer
Allen Wrench 4mm
Allen Wrench 2.5mm
User Manual

RESOURCES

USER MANUAL

DOT SIGHT X-REF

Specifications

More Information
922R Compliant	No
Warranty	Lifetime
Materials	Aluminum
Color(s)	Black
Quick-detachable	Yes
Parts Included	Cleaning Cloth, CR1620 3V High Energy Lithium Battery, Flat Washer, Hex Wrench 2.5mm, Hex Wrench 4mm, Lens Cover, M5x10 Phillips Screw, Scope Owner's Manual, Spring Washer
Reticle	M1 MRAD
Reticle Color(s)	Red and Green
Illumination Toggle Type	Analog
Brightness Settings	Gradual
Brightness Mode(s)	Manual
Battery Type	CR1620 3V
Battery Loading	Side Loading
Click Value @ 100 Yards (MOA)	1/2
Magnification	1
Linear FOV (ft @ 100 yds)	85
Eye Relief	Infinity
Parallax (yds)	Infinity
Parallax (m)	Infinity
Weight (oz)	13.1
Weight (g)	371.4

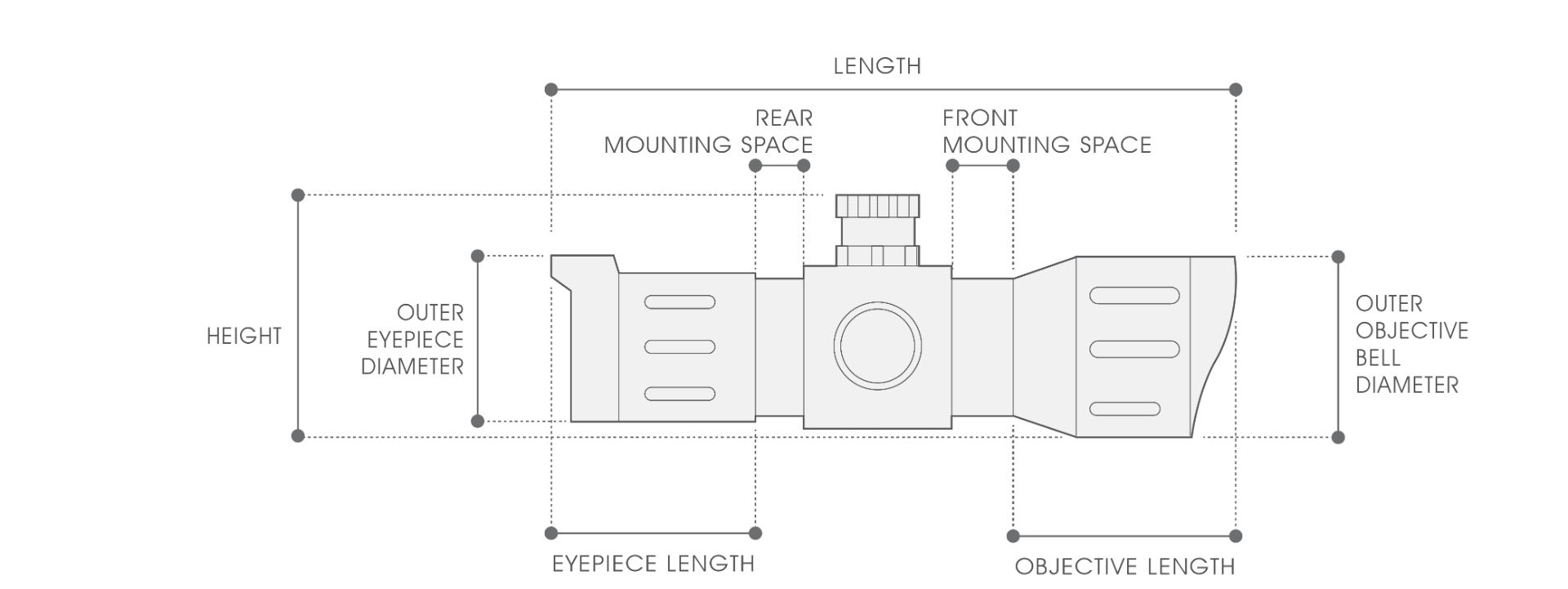

Dimensions

Eyepiece Length (mm)	45
Front Mounting Space (mm)	22
Height (in)	2.83
Length (in)	6.10
Length (mm)	154.94
Maintube Diameter (mm/in)	38 mm
Objective Length (mm)	28
Outer Eyepiece Diameter (mm)	40
Outer Objective Bell Diameter (mm)	46
Rear Mounting Space (mm)	15
Width (in)	3.12
Width (mm)	79.25

LEAPERS LIFETIME WARRANTY

Leapers, Inc. warrants that all products conform to published specifications and are free from defects in material and workmanship. Leapers, Inc. will repair or replace, at our discretion, a defective product for the duration of the product’s lifespan. Verification through an RA number is required. In the event of a product being discontinued, credit in the amount of the product’s MSRP may be offered.
