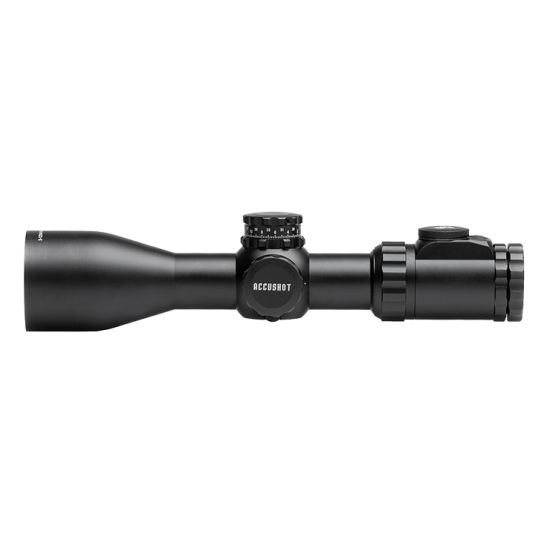

UTG® OP3 3-12X44 30mm Compact Scope, AO, IE®, Glass UMOA
SKU
OP3-GM3124UMOA
$279.97
- Built on TRUE STRENGTH® Platform and Completely Sealed and Nitrogen Filled for Reliable Shockproof and Zero Holding Performance
- IPX7 Waterproof Rated
- 30mm Tube with Best in Class Emerald Lens Coatings to Achieve Maximum Light Transmission for Best Clarity
- Premium Low Top Zero Lockable and Resettable Target Turrets with Precise 1/4 MOA per Click Adjustment
- UMOA Range Estimating Etched Glass Reticle
- Innovative EZ-TAP® Illumination Enhancing (IE®) System with Red/Green Dual-Color and 36 Multi-Color Mode to Accommodate All Weather/Light Conditions (US Pat. 8437079; EU Pat. EP2520894)
- 1-Click Illumination Memory Feature Gets the User Right Back to the Color/Brightness Setting Last Used
- Low Top Side Wheel Adjustable Turret (SWAT) for Parallax Adjustment from 10 Yards to Infinity
- Fine Tune Adjustable/Lockable Eyepiece Diopter
- Complete with Flip-open Lens Caps, 3" Removable Threaded Sunshade, Cleaning Cloth, and Medium Profile Max Strength Twist Lock Picatinny/Weaver Rings
ETCHED GLASS UMOA RETICLE
The UMOA reticle features hash marks at minute of angle increments for precise range estimation and bullet drop and wind drift compensation. This reticle is the best choice for long-range precision shooters who want clear adjustments and to rapidly calculate holds. The reticle’s center crosshair can be illuminated to assist aiming under different light conditions.
At 10X magnification at 100 yards, the reticle provides a 4 MOA (from end to end) center cross and equally distanced hash marks at 2 MOA increments all the way up to 50 MOA for holdover, 20 MOA for hold under, and 30 MOA on each side for wind drift. The center cross can be illuminated to assist aiming under different light conditions.
UMOA RETICLE RANGE ESTIMATING
1. MOA is half of the distance between the centers of one hash mark to that of the hash mark next to it.
2. Range estimating requires common knowledge of your target’s actual width and or height.
3. Set your scope at 10X magnification or the highest power of your particular scope should your highest power be below or above 10X magnification. View the target through the scope. Estimate the height or width of the target in MOA by determining how many hash marks the target spans.
4. Once the target’s height or width has been measured in MOA, use the following formula to estimate the distance to the target. An example scenario is provided to you below for reference.
RANGE ESTIMATING EXAMPLE
The length of an animal from shoulder to tail is 40 inches (1.016 meters). We see through the scope at 9X magnification that the animal spans 20 MOA. The distance to the animal can be derived using the formula below.
(1.016 x 3,438/20) X (9/10) = Range in meters to the animal
157.2 = Range in meters (or 172 yards) to the animal
ACCESSORIES INCLUDED
- MaxStrength Picatinny/Weaver Rings, 1 Pair
- 3 Inch Sunshade
- Flip-open Lens Caps
- R2032 3V High Energy Lithium Battery
- Hex Screw
- Allen Wrench 3mm
- Allen Wrench 1.5mm
- Cleaning Cloth
- User Manual
RESOURCES
| Warranty | Lifetime |
|---|---|
| Patent | EU PAT. EP2520894 / US PAT. 8437079 |
| Materials | 6061-T6 Aluminum |
| Quick-detachable | No |
| Focal Plane | SFP (Second Focal Plane) |
| Reticle | UMOA |
| Reticle Type | Etched Glass |
| Illuminated | Yes |
| Reticle Color | IE 36-Color |
| Illumination Toggle Type | EZ-TAP |
| Brightness Mode(s) | Manual |
| Waterproof Rating | IPX7 |
| Dustproof Rating | IP6X |
| Ballistic Drop Compensation | Yes |
| Range Estimation | Yes |
| Battery Loading | Rear Eyepiece |
| Battery Type | CR2032 |
| Click Value | 1/4 MOA |
| Windage Travel | Right 40 MOA / Left 40 MOA |
| Total Windage | 80 MOA |
| Elevation Travel | Up 40 MOA / Down 40 MOA |
| Total Elevation | 80 MOA |
| Magnification Max. | 12 |
| Magnification Min. | 3 |
| Angular FOV | Low Power: 6.1° / High Power: 1.9° |
| Linear FOV @ 100 yds | Low Power: 32′ / High Power: 10′ |
| Linear FOV @ 100 m | Low Power: 10.7 m / High Power: 3.3 m |
| Eye Relief | 102 mm - 90 mm / 4 in - 3.5 in |
| Parallax Control | Left Side Adjustable Turret |
| Parallax | 9.14 m / 10 yds - Infinity |
| Exit Pupil | 14.7 mm - 4.5 mm |
| Diopter Adjustment | -2D ~ +2D |
| Diopter Type | Friction Secured, Locking Ring |
| Caliber Rating | 0.308 |
| Rings or Mount Included | 30mm Picatinny/Weaver Rings |

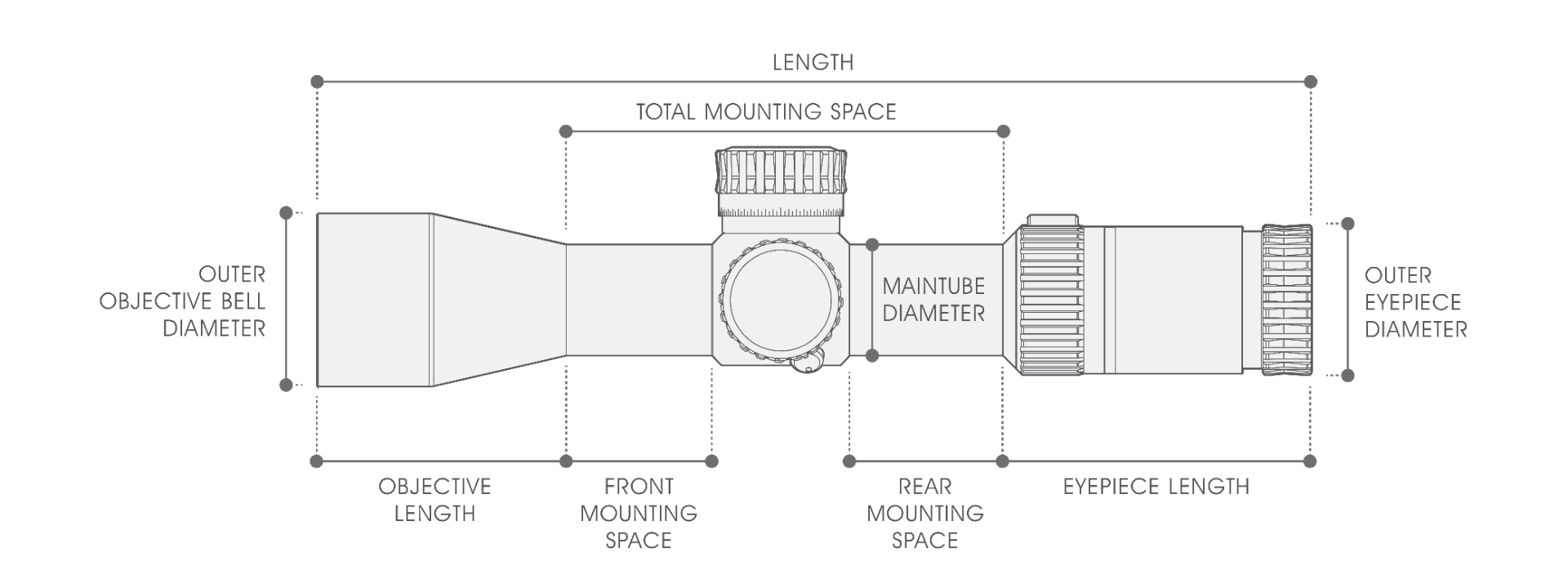

Dimensions
| Eyepiece Length | 79 mm / 3.1 in |
|---|---|
| Front Mounting Space | 31.5 mm / 1.2 in |
| Length | 258 mm / 10.2 in |
| Maintube Dia. | 30 mm |
| Objective Length | 77 mm / 3 in |
| Objective Lens Dia. | 44 mm |
| Outer Eyepiece Dia. | 40 mm / 1.6 in |
| Outer Objective Bell Dia. | 53 mm / 2.1 in |
| Rear Mounting Space | 30 mm / 1.2 in |
| Total Mounting Space | 101.5 mm / 4 in |
| Weight | 587 g / 20.7 oz |
| # | IMAGE | DESCRIPTION | QUANTITY |
|---|---|---|---|
| 1 |  | MaxStrength Picatinny/Weaver Rings, 1 Pair | 1 |
| 2 |  | 3 Inch Sunshade | 1 |
| 3 |  | Flip-open Lens Caps | 1 |
| 4 |  | CR2032 3V High Energy Lithium Battery | 1 |
| 5 |  | Hex Screw | 1 |
| 6 |  | Allen Wrench 3mm | 1 |
| 7 |  | Allen Wrench 1.5mm | 1 |
| 8 |  | Cleaning Cloth | 1 |
| 9 |  | Scope Owners Manual | 1 |
LEAPERS® LIFETIME WARRANTY
Leapers, Inc. warrants that all products conform to published specifications and are free from defects in material and workmanship. Leapers, Inc. will repair or replace, at our discretion, a defective product for the duration of the product’s lifespan. In the event of a product being discontinued, credit for the product’s MSRP may be offered.
