UTG® True Hunter® 4X32 1" Crossbow Scope, RGB, PRO 5-Step

SKU

SCP-M4CR5WQ

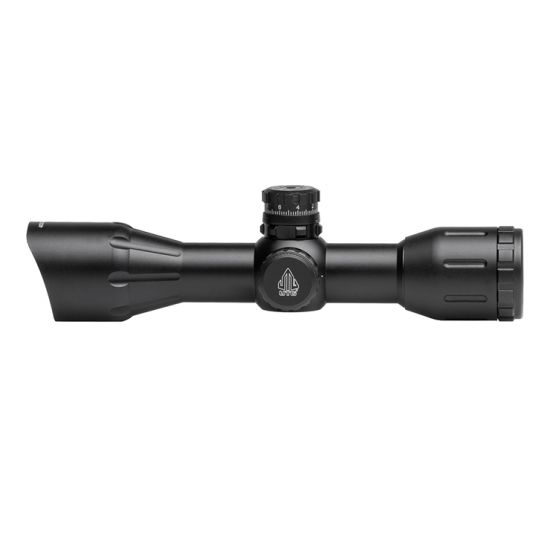

UTG 4X32 1" Crossbow Scope, Pro 5-Step RGB Reticle, QD Rings

in stock

$189.97

Dealer Price: $ $189.97 (Save $)

MAP: $169.97

$189.97

Dealer Price: $ $189.97 (Save $)

Notify me when the price drops

Overview

Details

Specifications

Dimensions

Parts included

Built on Robust True Strength® Platform with Smart Spherical Structure(SSS) to Achieve Most Precise and Accurate Windage/Elevation Adjustment and Toughest Recoil Resistance
Unique Pro 5-Step Red/Green Illuminated Reticle Designed for Crossbows and Other Applications Requiring Variable Velocity Compensation, Includes 5 Horizontal Lines Calibrated for 300fps Crossbows for Quick Aiming at 10, 20, 30, 40 and 50-yard Distances
Side Wheel Red/Green Dual Illumination Control for Versatile Uses in Different Light Conditions
Superior Quality Precision Broadband Lens Coating Offers the Brightest Image and a Generous Field of View
Features Premium Zero Lockable and Resettable Target Turrets for Windage and Elevation Adjustment
Complete with Flip-open Lens Caps and Low Profile Quick Detach Ring Mounts with Patented Lever Lock Feature
Built in TactEdge® Angled Integral Sunshade
Parallax Pre-adjusted at 50 Yards

USER MANUAL

WIRE PRO 5-STEP RETICLE

The Pro 5-step reticle is designed for crossbows. The reticle consists of five horizontal lines and a vertical line, with a thin center crosshair. The horizontal lines are for aiming at 10, 20, 30, 40, and 50 yard distances, calibrated for 300fps crossbows.

Follow the steps below to zero a scope with Pro 5-step Reticle on a crossbow:

This reticle is calibrated for a 300fps crossbow. Due to the differences in crossbows and bolts, we suggest that you confirm the drop yardage with your particular crossbow

Refer to section M. General Zeroing Procedures, and zero the center crosshair at 10 yards. The second descending crosshair should be accurate at approximately 20 yards, the third at 30 yards, the fourth at 40 yards, and the fifth at 50 yards.
To confirm, start by moving the target back a further 8 yards and shooting using the next descending crosshair. Adjust the target until the bolt is hitting the bull’s eye. Document the exact range.
Repeat Step 2 for each crosshair.

INNOVATIVE TRUE STRENGTH TS PLATFORM

History, development, & technology

TS, as in True Strength®, is the signature scope construction platform of Leapers UTG® optics. As the name suggests, no matter if it's a full size or compact scope, magnifier or dot sight, we aim to achieve the highest dependability starting at the heart of our scopes' structure. The research and development of this innovative structure was initiated in 2001 and in 2002 the first TS Platform scope was put into mass production. With our continuous testing, verification, and multiple rounds of improvement, we started promoting and selling TS optics on a global scale in 2005. Today, all our optics are built on the tough TS Platform to include a one-piece integral aluminum main tube, meticulously placed reinforcements at key structural points, and nitrogen purging to achieve optimal rainproof, fogproof, and shockproof performance even in the most challenging of scenarios. This superior TS Platform has even been adopted into the lineup of UTG® laser products, giving them precise and secure adjustment.

SMART SPHERICAL STRUCTURE

The Smart Spherical Structure (SSS) is one of the most significant characteristics of the TS Platform.
SSS simulates the human joint structure to achieve the utmost precision and reliability.
The erector tube is constrained via a ball and socket structural relationship, which provides the desirable flexibility to respond to windage and elevation adjustments and the optimal ability to hold zero under heavy recoil.

TRUE STRENGTH® PLATFORM

Reduces and Absorbs Recoil, Alleviating Potential Loss of Zero
Fully Tested on Both Air Rifles and Firearms
TS Technology Implemented in Every Leapers Scope

ADVANCED RECOIL PROOF SYSTEM

The Most Advanced and User-friendly Windage and Elevation Adjustment System with Innovative Design, Precision Components, and Disciplined Assembly
UTG®'s Leaf Spring System is Made from a Special Heat Treated Beryllium Bronze Alloy to Maintain Reliable and Consistent Long Term Tension
ACCUSHOT® Models Equipped with a Rugged Coil Erector Return Spring System For Improved Zero Hold Under Heavy Recoil and Greater Windage/Elevation Adjustment Range

More Information
Ballistic Drop Compensation	No
Battery Loading	Top Loading
Battery Type	CR1620 3V
Brightness Mode(s)	Manual
Brightness Settings	Gradual
Click Value	1/4 MOA
Diopter Adjustment	-2D to +2D
Diopter Type	Friction Secured
Elevation Travel	Up ≥30 MOA / Down ≥30 MOA
Elevation Travel (Total)	≥60 MOA
Exit Pupil	8 mm
Eye Relief	3.8 in (97 mm)
Field of View (Angular FOV)	5.2°
Field of View (Linear FOV)	27.2 ft @ 100 yds (9.1 m @ 100 m)
Focal Plane	SFP (Second Focal Plane)
Illuminated	Yes
Illumination Toggle Type	Analog Rheostat
Magnification	4X
Materials	Aluminum
Objective Lens Diameter	32 mm
Parallax	50 yds (45.7 m)
Parallax Control	Fixed
Patent	US PAT. 8397421
Quick-detachable	Yes
Range Estimation	No
Reticle	PRO 5-Step
Reticle Color	Red and Green
Reticle Construction	Wire
Rings or Mount Included	1" Lever Lock QD Picatinny/Weaver Rings
Surface Finish	Anodized
Travel Per Revolution	20 MOA
Weight	12.3 oz (349 g)
Windage Travel (Total)	≥60 MOA
Zero Stop	No

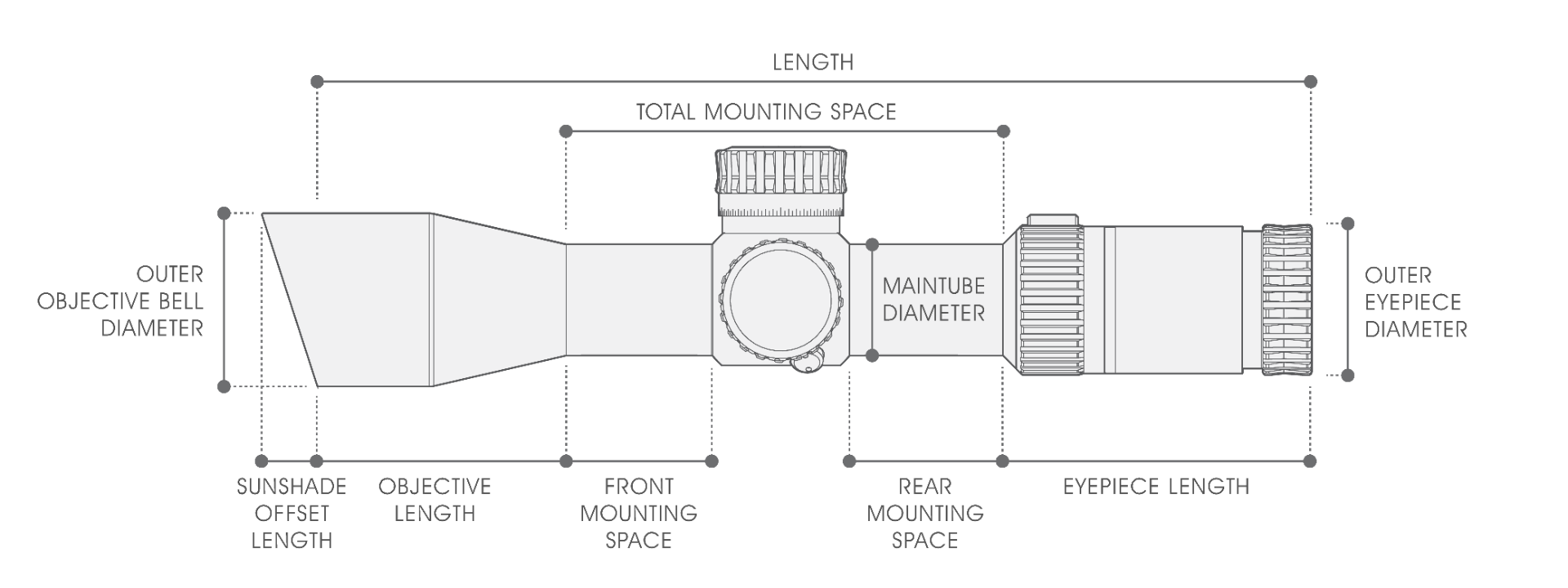

Dimensions

Eyepiece Diameter	1.5 in (38 mm)
Length	7.7 in (196 mm)
Mounting Space (Front)	1.2 in (30 mm)
Mounting Space (Rear)	1.2 in (30 mm)
Mounting Space (Total)	3.5 in (90 mm)
Objective Diameter	1.7 in (42 mm)
Objective Tube Length	2.1 in (54 mm)
Ocular Tube Length	2 in (52 mm)
Sunshade Offset Length	.4 in (96.5 mm)
Tube Diameter	1 Inch

#	DESCRIPTION	QUANTITY
1	Allen Wrench 2.5mm	1
2	Allen Wrench 3mm	1
3	Allen Wrench 4mm	1
4	CR1620 3V	1
5	Flip-open Lens Caps	1
6	Cleaning Cloth	1
7	User Manual	1
8	Lever Lock QD Rings, 1 Pair	1
9	Hex Screw	1

LEAPERS® LIFETIME WARRANTY

Leapers, Inc. warrants that all products conform to published specifications and are free from defects in material and workmanship. Leapers, Inc. will repair or replace, at our discretion, a defective product for the duration of the product’s lifespan. In the event of a product being discontinued, credit for the product’s MSRP may be offered.
