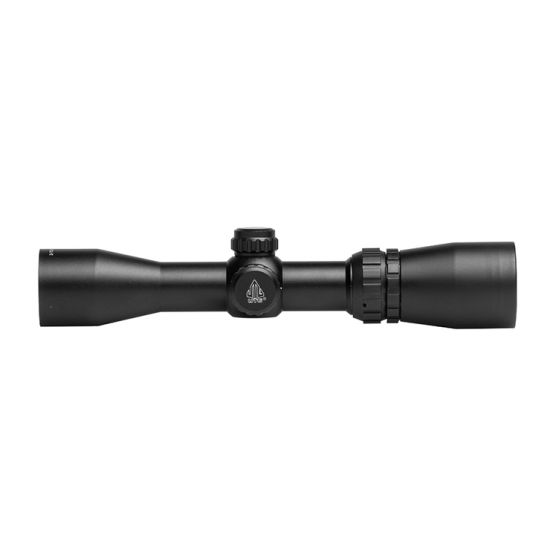

UTG® True Hunter® 2-7X32 1" Handgun Scope, Long Eye Relief, PDC Reticle

Built on True Strength® Platform, Completely Sealed and Nitrogen Filled, Shockproof, Fogproof, and Rainproof
Up to 25" of Eye Relief Allowing for Effective Use on Handguns
Red/Green Illuminated Projectile Drop Compensation (PDC) Reticle Assists Shooting at Difference Distances
Screw Lockable Turrets with Most Consistent and Precise 1/4MOA per Click Windage/Elevation Adjustment
Adjustable Eyepiece with Locking Ring for Additional Security
Emerald Coated Lenses to Achieve Maximum Light Transmission for Best Clarity
Parallax Pre-set at 35Yds
Complete with Medium Height Picatinny/Weaver Rings and High Quality Flip-open Lens Caps

INNOVATIVE TRUE STRENGTH TS PLATFORM

History, development, & technology

TS, as in True Strength®, is the signature scope construction platform of Leapers UTG® optics. As the name suggests, no matter if it's a full size or compact scope, magnifier or dot sight, we aim to achieve the highest dependability starting at the heart of our scopes' structure. The research and development of this innovative structure was initiated in 2001 and in 2002 the first TS Platform scope was put into mass production. With our continuous testing, verification, and multiple rounds of improvement, we started promoting and selling TS optics on a global scale in 2005. Today, all our optics are built on the tough TS Platform to include a one-piece integral aluminum main tube, meticulously placed reinforcements at key structural points, and nitrogen purging to achieve optimal rainproof, fogproof, and shockproof performance even in the most challenging of scenarios. This superior TS Platform has even been adopted into the lineup of UTG® laser products, giving them precise and secure adjustment.

SMART SPHERICAL STRUCTURE

The Smart Spherical Structure (SSS) is one of the most significant characteristics of the TS Platform.
SSS simulates the human joint structure to achieve the utmost precision and reliability.
The erector tube is constrained via a ball and socket structural relationship, which provides the desirable flexibility to respond to windage and elevation adjustments and the optimal ability to hold zero under heavy recoil.

TRUE STRENGTH® PLATFORM

Reduces and Absorbs Recoil, Alleviating Potential Loss of Zero
Fully Tested on Both Air Rifles and Firearms
TS Technology Implemented in Every Leapers Scope

ADVANCED RECOIL PROOF SYSTEM

The Most Advanced and User-friendly Windage and Elevation Adjustment System with Innovative Design, Precision Components, and Disciplined Assembly
UTG®'s Leaf Spring System is Made from a Special Heat Treated Beryllium Bronze Alloy to Maintain Reliable and Consistent Long Term Tension
ACCUSHOT® Models Equipped with a Rugged Coil Erector Return Spring System For Improved Zero Hold Under Heavy Recoil and Greater Windage/Elevation Adjustment Range

WIRE PDC RETICLE

The Projectile Drop Compensation (PDC) reticle uses different bars and circles arranged at designated heights to aid in range estimation and serve as aiming points set at predetermined distances. This enables easy and rapid target engagement at multiple ranges.

USING THE PDC RETICLE

Due to the wide variety of handguns that this scope can be mounted to, the correct bullet drop distances can vary significantly. A .38 Special handgun will show more bullet drop than a .308 Winchester one.

Refer to section M. General Zeroing Instructions to zero the center crosshair.
The descending reference points are 2 MOA, 6 MOA, and 10 MOA, with the top of the lower post at 15 MOA below the center crosshair, at full 7x magnification.
Use the above information to approximate the distances that these holdovers will be accurate for, or alternately use a ballistics calculator.
For best results, confirm the approximations with live fire testing.

More Information
Battery Loading	Left Side Turret
Battery Type	CR1620 3V
Brightness Mode(s)	Manual
Brightness Settings	Gradual
Click Value	1/4 MOA
Diopter Adjustment	-2D to +2D
Diopter Type	Locking Ring
Elevation Travel	Up ≥30 MOA / Down ≥30 MOA
Elevation Travel (Total)	≥60 MOA
Exit Pupil	16 - 5 mm
Eye Relief	25 - 13.8 in (635 - 351 mm)
Field of View (Angular FOV)	2.5° - 1.3°
Field of View (Linear FOV)	19.2 - 7 ft @ 100 yds (4.4 - 2.3 m @ 100 m)
Focal Plane	SFP (Second Focal Plane)
Illuminated	Yes
Illumination Toggle Type	Analog Rheostat
Lens Material	Glass
Magnification Max.	7X
Magnification Min.	2X
Material Surface Finish	Anodized
Materials	Aluminum
Objective Lens Diameter	32 mm
Parallax	35 yds (32.0 m)
Parallax Control	Fixed
Range Estimation	No
Reticle	PDC
Reticle Color	Red and Green
Reticle Construction	Wire
Rings or Mount Included	Picatinny Rings, 1" Med. Profile, Hex Thumb Nut (RGWM-25M4)
Travel Per Revolution	15 MOA
Weight	13.5 oz (384 g)
Windage Travel (Total)	≥60 MOA
Zero Stop	No

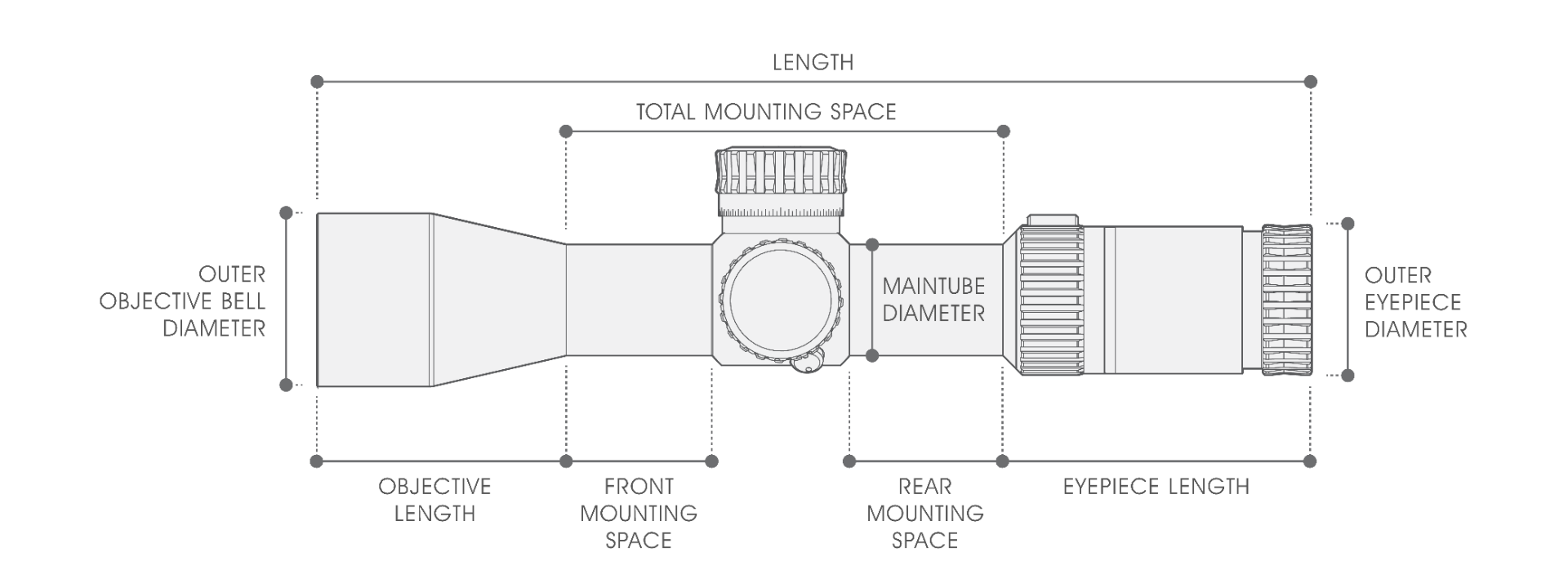

Dimensions

Eyepiece Diameter	1.71 in (43.5 mm)
Length	9.4 in (238 mm)
Mounting Space (Front)	1.3 in (33 mm)
Mounting Space (Rear)	1.2 in (31 mm)
Mounting Space (Total)	3.62 in (92 mm)
Objective Diameter	1.54 in (39.2 mm)
Objective Tube Length	2.4 in (60 mm)
Ocular Tube Length	3.3 in (85 mm)
Tube Diameter	1 Inch

#	DESCRIPTION	QUANTITY
1	User Manual	1
2	Picatinny/Weaver Rings, 1 Pair	1
3	Hex Screw	1
4	Flip-open Lens Caps	1
5	Cleaning Cloth	1
6	CR1620 3V High Energy Lithium Battery	1
7	Allen Wrench 1.5mm	1
8	Allen Wrench 3mm	1
