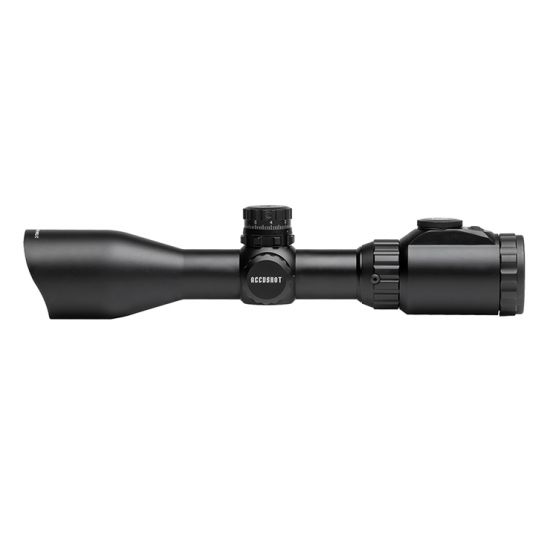

UTG 2-7X44 30mm Long Eye Relief Scout Scope, AO, 36-color

SKU
SCP3-274LAOIEW

UTG 2-7X44 30mm Long Eye Relief Scout Scope, AO, 36-color

Out of stock
$249.97
  • 30mm 1 Piece Tube for Maximum Light Transmission
  • Built on TRUE STRENGTH® Platform, Completely Sealed and Nitrogen Filled, Shockproof, Fogproof and Rainproof
  • Provides Amazing, True and Consistent Extended Eye Relief for Shooters to Effectively Use on Any Firearm Where the Optics Cannot be Mounted Directly Above the Action
  • Innovative EZ-TAP® Illumination Enhancing (IE®) System with Red/Green Dual-Color Mode and 36 Color Multi-Color Mode to Accommodate All Weather/Light Conditions (US PAT. 8437079; EU PAT. EP2520894)
  • 1-Click High-tech Illumination Memory Feature Gets You Right Back to the Color/Brightness Setting Last Used
  • Premium Zero Locking and Zero Resetting Target Turrets with Most Consistent and Precise 1/4 MOA per Click Windage/Elevation Adjustment
  • Emerald Coated Lenses to Achieve Maximum Light Transmission for Best Clarity
  • Unique 6 Mil-dot Tactical Range Estimating(TRE) Etched Glass Reticle for the Ultimate Performance
  • Side Wheel Adjustable Turret(SWAT) for Parallax Adjustment from "True 10 Yards" Up, and Ready to Accept Optional Big Wheel to Achieve Finer Parallax Adjustment
  • Practical TactEdge® Angled Integral Sunshade
  • Complete with Twist Lock Medium Profile Picatinny/Weaver Rings and High Quality Flip-open Lens Caps
  • EU PAT. EP2520894, US PAT. 8437079

ETCHED GLASS MIL-DOT RETICLE

The crosshair has dots and dashes spread equally along the X and Y axis. The distance between two adjacent marks subtends to 1 milli-radian. The etched-glass reticle offers our discerning users the sharpest Mil-dot reticle for precise range estimation.


RANGE ESTIMATING SCOPE

Leapers/UTG started introducing mil-dot reticle optics from as early as 2003, pioneering the Range Estimating concept as a useful tool for hunters and shooters around the world. Today, mil-dot reticle is widely accepted and used in this industry. Leveraging our years of experience in this area, we developed and refined the unique Tactical Range Estimating(TRE) mil-dot reticle and offer this feature in almost all of our optics. With some patient learning and practice using our TRE, shooters can enhance accuracy and performance in ways not imagined before.

9 Dot TRE Mil-Dot:
Nine dots are featured spanning each side of the reticle's origin in the left, right, up, and down directions. These provide 18 points of aim across for both windage and elevation. When including the reticle's origin and the inner edges of the reticle's outer duplex a total of 21 points of aim are available.


6 Dot TRE Mil-Dot:
Six dots are featured spanning each side of the reticle's origin in the left, right, up, and down directions. These provide 12 points of aim across for both windage and elevation. When including the reticle's origin and the inner edges of the reticle's outer duplex a total of 15 points of aim are available.


4 DOT TRE Mil-Dot:
Four dots are featured spanning each side of the reticle's origin in the left, right, up, and down directions. These provide 8 points of aim across for both windage and elevation. When including the reticle's origin and the inner edges of the reticle's outer duplex a total of 11 points of aim are available. For 4 DOT TRE Mil-dot scopes with a floating reticle, sans the outer duplex, a total of 9 points of aim are available.

MIL-DOT RANGE ESTIMATING

1. Range estimating requires common knowledge/experience about your target's actual width or height.
2. Set your scope at 10X or the proper power, depending on the scope. View the target through the scope. Place the center of the dot against one edge of the target and measure to the opposite edge of the target.

3. Once the target has been measured in mils, depending on the scope model, a formula is available to estimate the distance of the target.
4. Each scope will come with a pre-calculated mil-dot table of most used distance estimates to aid the user.

MIL-DOT RANGE ESTIMATING EXAMPLE

For example, based on past experiences, the length of a known animal from shoulder to tail is 40 inches (1.016 meters), and we see through a scope at, for example, 9X to find that the animal occupies 9 mils. Therefore, the distance can be derived from using the following formula:

Hence, (1.016 x 1,000/9) X (9/10 ) = 101.6 meters (110 yds).
Armed with this knowledge, you can compensate for the bullet’s drop accordingly and make “great things happen”!

ACCESSORIES INCLUDED

  • Hex Screw
  • MaxStrength Picatinny/Weaver Rings, 1 Pair
  • Mil-Dot Chart
  • Cleaning Cloth
  • Flip-open Lens Caps X2
  • CR2032 3V High Energy Lithium Battery
  • Allen Wrench 3mm
  • Allen Wrench 4mm

RESOURCES

More Information
WarrantyLifetime
No. of Pieces1
MaterialsAluminum
Color(s)Black
Quick-detachableNo
Parts IncludedCleaning Cloth, CR2032 3V High Energy Lithium Battery, Flip-open Lens Caps, Hex Screw, Hex Wrench 3mm, Hex Wrench 4mm, MaxStrength Picatinny/Weaver Rings, 1 Pair, Mil-Dot Chart, Scope Owner's Manual
Focal PlaneSFP (Second Focal Plane)
ReticleMil-Dot
Reticle TypeEtched Glass
Reticle IlluminationNo
Reticle Color(s)IE 36-Color
Illumination Toggle TypeEZ-TAP
Brightness Mode(s)Manual
Dustproof RatingIP6X
Operating Temperature High (⁰F)131
Operating Temperature Low (⁰F)5
Operating Temperature High (⁰C)55
Operating Temperature Low (⁰C)-15
Ballistic Drop CompensationNo
Range EstimationNo
Battery LoadingRear Eyepiece
Battery TypeCR2032 3V
Click Value @ 100 Yards (MOA)1/4
Click Value @ 100 Meters (MOA)0.27
Windage Adjustment Left (MOA)40
Windage Adjustment Right (MOA)40
Windage Adjustment Per Revolution (MOA)18
Elevation Adjustment Up (MOA)40
Elevation Adjustment Down (MOA)40
Elevation Adjustment Per Revolution (MOA)18
Click Value @ 100 Yards (MIL)0.07
Click Value @ 100 Meters (MIL)0.08
Windage Adjustment Left (MIL)11.64
Windage Adjustment Right (MIL)11.64
Windage Adjustment Per Revolution (MIL)5.24
Elevation Adjustment Up (MIL)11.64
Elevation Adjustment Down (MIL)11.64
Elevation Adjustment Per Revolution (MIL)5.24
Magnification Max.7
Magnification Min.2
Angular FOV Low Mag. (Degrees)6
Angular FOV High Mag. (Degrees)1.9
Linear FOV Low Mag. (ft @ 100 yds)10
Linear FOV High Mag. (ft @ 100 yds)32
Linear FOV Low Mag. (m @ 100 m)10.5
Linear FOV High Mag. (m @ 100 m)3.1
Eye Relief High Mag. (in)11
Eye Relief Low Mag. (in)9.5
Eye Relief High Mag. (mm)241
Eye Relief Low Mag. (mm)279
Parallax ControlLeft Side Adjustable Turret
Parallax Max (yds)Infinity
Parallax Max (m)Infinity
Parallax Min (yds)10
Parallax Min (m)9.14
Exit Pupil High Mag. (mm)6.3
Exit Pupil Low Mag. (mm)22
Objective Lens Diameter (in)1.7
Objective Lens Diameter (mm)44
Diopter Adjustment -2D ~ +2D
Diopter TypeFriction Secured
Weight (oz)25.4
Weight (g)720
Rings or Mount Included30mm Picatinny/Weaver Rings

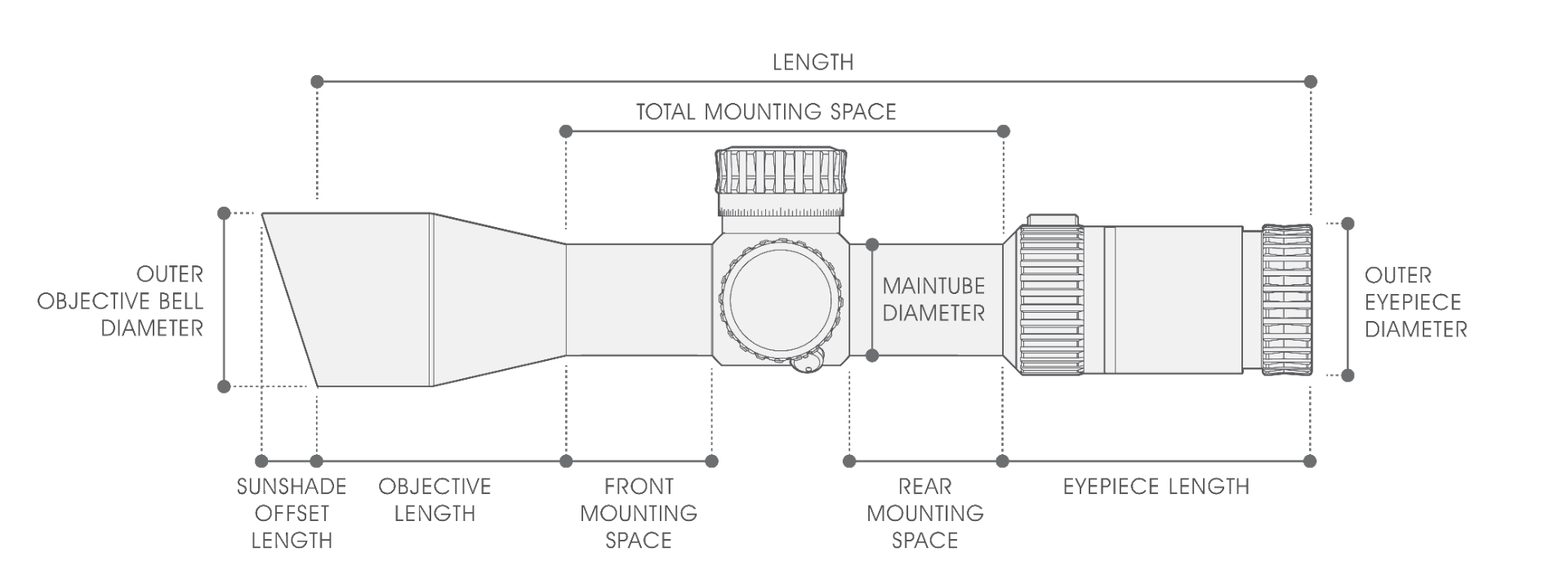

Dimensions
Eyepiece Length (in)3.8
Eyepiece Length (mm)97
Front Mounting Space (in)1.3
Front Mounting Space (mm)34
Length (in)11.5
Length (mm)292
Maintube Diameter (mm/in)30 mm
Objective Length (in)3
Objective Length (mm)76
Outer Eyepiece Diameter (in)1.8
Outer Eyepiece Diameter (mm)46.5
Outer Objective Bell Diameter (in)2.1
Outer Objective Bell Diameter (mm)53
Rear Mounting Space (in)1.4
Rear Mounting Space (mm)36
Total Mounting Space (in)4.1
Total Mounting Space (mm)103

LEAPERS LIFETIME WARRANTY

Leapers, Inc. warrants that all products conform to published specifications and are free from defects in material and workmanship. Leapers, Inc. will repair or replace, at our discretion, a defective product for the duration of the product’s lifespan. Verification through an RA number is required. In the event of a product being discontinued, credit in the amount of the product’s MSRP may be offered.
