UTG 4-16X44 30mm Scope, AO, 36-color Mil-dot, w/ Rings

SKU

SCP3-U416AOIEW

In stock

$199.97

Notify me when the price drops

Details

30mm Tube with Best in Class Emerald Lens Coatings to Achieve Maximum Light Transmission for Best Clarity
Built on TRUE STRENGTH® Platform, Completely Sealed and Nitrogen Filled, Shockproof, Fogproof and Rainproof
4X to 16X Power with Quick Power Selector Ring Perfect for Target Acquisition and Zooming In
Innovative EZ-TAP® Illumination Enhancing (IE®) System with Red/Green Dual-Color Mode and 36 Color Multi-Color Mode to Accommodate All Weather/Light Conditions
1-Click High-tech Illumination Memory Feature Gets You Right Back to the Color/Brightness Setting Last Used
Premium Zero Lockable and Zero Resettable Target Turrets with Most Consistent and Precise 1/4 MOA per Click Adjustment
Side Wheel Adjustable Turret (SWAT) for Parallax Adjustment - From 10 Yards to Infinity
Mil-dot Range Estimating Reticle with Built-in TactEdge® Angled Integral Sunshade for Most Optimal Aiming and Shooting Performance
Complete with UTG Max Strength Twist Lock Picatinny/Weaver Rings and High Quality Flip-open Lens Caps
EU PAT. EP2520894,US PAT. 8437079

INNOVATIVE TRUE STRENGTH TS PLATFORM

History, development, & technology

TS, as in True Strength®, is the signature scope construction platform of Leapers UTG® optics. As the name suggests, no matter if it's a full size or compact scope, magnifier or dot sight, we aim to achieve the highest dependability starting at the heart of our scopes' structure. The research and development of this innovative structure was initiated in 2001 and in 2002 the first TS Platform scope was put into mass production. With our continuous testing, verification, and multiple rounds of improvement, we started promoting and selling TS optics on a global scale in 2005. Today, all our optics are built on the tough TS Platform to include a one-piece integral aluminum main tube, meticulously placed reinforcements at key structural points, and nitrogen purging to achieve optimal rainproof, fogproof, and shockproof performance even in the most challenging of scenarios. This superior TS Platform has even been adopted into the lineup of UTG® laser products, giving them precise and secure adjustment.

SMART SPHERICAL STRUCTURE

The Smart Spherical Structure (SSS) is one of the most significant characteristics of the TS Platform.
SSS simulates the human joint structure to achieve the utmost precision and reliability.
The erector tube is constrained via a ball and socket structural relationship, which provides the desirable flexibility to respond to windage and elevation adjustments and the optimal ability to hold zero under heavy recoil.

TRUE STRENGTH® PLATFORM

Reduces and Absorbs Recoil, Alleviating Potential Loss of Zero
Fully Tested on Both Air Rifles and Firearms
TS Technology Implemented in Every Leapers Scope

ADVANCED RECOIL PROOF SYSTEM

The Most Advanced and User-friendly Windage and Elevation Adjustment System with Innovative Design, Precision Components, and Disciplined Assembly
UTG®'s Leaf Spring System is Made from a Special Heat Treated Beryllium Bronze Alloy to Maintain Reliable and Consistent Long Term Tension
ACCUSHOT® Models Equipped with a Rugged Coil Erector Return Spring System For Improved Zero Hold Under Heavy Recoil and Greater Windage/Elevation Adjustment Range

IE 36-COLOR ILLUMINATION ENHANCING TECHNOLOGY

Low profile illumination control housing with reinforced circuitry prevents intermittent reticle illumination enven under the heaviest of recoil
Red & Green dual-color and 36 multi-color modes to accommodate all weather & light conditions
1-click illumination memory returns the user to the last color & brightness setting used
Green low power consumption technology with automatic 1 hour shut-off

COLOR INDEX TABLE

EZ-TAP ILLUMINATION ADJUSTMENT

Turn On/Off

Press either the G or R button to turn on the light.
Press and hold either the G or R button for 1 second to turn off the light.
Light will go off after 1 hour with no action.

Operating in the RGB Mode

Press the R button to turn the red light on or to change brightness of the red light.
Press the G button to turn the green light on or to change brightness of the green light.

Switching between RGB and Multi-Color Modes

The default mode is the RGB mode.
To switch between the RGB mode and the Multi-Color mode, press and hold BOTH G & R buttons at the same time for 1 second.

Operating in Multi-Color Mode

Press the R button to change the color between the selections in the Color Index Table.
Press the G button to change the color intensity as shown in the Color Index Table.

WIRE MIL-DOT RETICLE

The crosshair has multiple dots spread equally along the X and Y axis. The distance between two adjacent marks subtends to 1 milli-radian. The traditional wire reticle is robust and holds up against strong recoil and offers a clear aiming reference without compromise.

RANGE ESTIMATING SCOPE

Leapers/UTG started introducing mil-dot reticle optics from as early as 2003, pioneering the Range Estimating concept as a useful tool for hunters and shooters around the world. Today, mil-dot reticle is widely accepted and used in this industry. Leveraging our years of experience in this area, we developed and refined the unique Tactical Range Estimating(TRE) mil-dot reticle and offer this feature in almost all of our optics. With some patient learning and practice using our TRE, shooters can enhance accuracy and performance in ways not imagined before.

9 Dot TRE Mil-Dot:
Nine dots are featured spanning each side of the reticle's origin in the left, right, up, and down directions. These provide 18 points of aim across for both windage and elevation. When including the reticle's origin and the inner edges of the reticle's outer duplex a total of 21 points of aim are available.

6 Dot TRE Mil-Dot:
Six dots are featured spanning each side of the reticle's origin in the left, right, up, and down directions. These provide 12 points of aim across for both windage and elevation. When including the reticle's origin and the inner edges of the reticle's outer duplex a total of 15 points of aim are available.

4 DOT TRE Mil-Dot:
Four dots are featured spanning each side of the reticle's origin in the left, right, up, and down directions. These provide 8 points of aim across for both windage and elevation. When including the reticle's origin and the inner edges of the reticle's outer duplex a total of 11 points of aim are available. For 4 DOT TRE Mil-dot scopes with a floating reticle, sans the outer duplex, a total of 9 points of aim are available.

MIL-DOT RANGE ESTIMATING

1. Range estimating requires common knowledge/experience about your target's actual width or height.
2. Set your scope at 10X or the proper power, depending on the scope. View the target through the scope. Place the center of the dot against one edge of the target and measure to the opposite edge of the target.

3. Once the target has been measured in mils, depending on the scope model, a formula is available to estimate the distance of the target.
4. Each scope will come with a pre-calculated mil-dot table of most used distance estimates to aid the user.

MIL-DOT RANGE ESTIMATING EXAMPLE

For example, based on past experiences, the length of a known animal from shoulder to tail is 40 inches (1.016 meters), and we see through a scope at, for example, 9X to find that the animal occupies 9 mils. Therefore, the distance can be derived from using the following formula:

Hence, (1.016 x 1,000/9) X (9/10 ) = 101.6 meters (110 yds).
Armed with this knowledge, you can compensate for the bullet’s drop accordingly and make “great things happen”!

ACCESSORIES INCLUDED

Throw Lever
Flip-open Lens Caps
Hex Wrench 2 mm
Hex Wrench 1.5 mm
CR2032 Battery
Cleaning Cloth

RESOURCES

USER MANUAL

MIL DOT CARD

Specifications

More Information
Sunshade Offset Length (in)	1
Sunshade Offset Length (mm)	25
Warranty	Lifetime
Materials	Aluminum
Color(s)	Black
Quick-detachable	No
Parts Included	0
Focal Plane	SFP (Second Focal Plane)
Reticle	Mil-Dot
Reticle Type	Wire
Reticle Illumination	No
Reticle Color(s)	IE 36-Color
Illumination Toggle Type	EZ-TAP
Brightness Mode(s)	Manual
Dustproof Rating	IP6X
Operating Temperature High (⁰F)	131
Operating Temperature Low (⁰F)	5
Operating Temperature High (⁰C)	55
Operating Temperature Low (⁰C)	-15
Ballistic Drop Compensation	No
Range Estimation	Yes
Battery Loading	Rear Eyepiece
Battery Type	CR2032 3V
Click Value @ 100 Yards (MOA)	1/4
Click Value @ 100 Meters (MOA)	0.27
Windage Adjustment Left (MOA)	40
Windage Adjustment Right (MOA)	40
Windage Adjustment Per Revolution (MOA)	18
Elevation Adjustment Up (MOA)	40
Elevation Adjustment Down (MOA)	40
Elevation Adjustment Per Revolution (MOA)	18
Click Value @ 100 Yards (MIL)	0.07
Click Value @ 100 Meters (MIL)	0.08
Windage Adjustment Left (MIL)	11.64
Windage Adjustment Right (MIL)	11.64
Windage Adjustment Per Revolution (MIL)	5.24
Elevation Adjustment Up (MIL)	11.64
Elevation Adjustment Down (MIL)	11.64
Elevation Adjustment Per Revolution (MIL)	5.24
Magnification Max.	16
Magnification Min.	4
Angular FOV Low Mag. (Degrees)	4.7
Angular FOV High Mag. (Degrees)	1.3
Linear FOV Low Mag. (ft @ 100 yds)	6.8
Linear FOV High Mag. (ft @ 100 yds)	24.4
Linear FOV Low Mag. (m @ 100 m)	8.2
Linear FOV High Mag. (m @ 100 m)	2.3
Eye Relief High Mag. (in)	3.2
Eye Relief Low Mag. (in)	3
Eye Relief High Mag. (mm)	76
Eye Relief Low Mag. (mm)	81
Parallax Control	Left Side Adjustable Turret
Parallax Max (yds)	Infinity
Parallax Max (m)	Infinity
Parallax Min (yds)	10
Parallax Min (m)	9.14
Exit Pupil High Mag. (mm)	2.8
Exit Pupil Low Mag. (mm)	10.2
Objective Lens Diameter (in)	1.7
Objective Lens Diameter (mm)	44
Diopter Adjustment	-2D ~ +2D
Diopter Type	Friction Secured
Weight (oz)	23.4
Weight (g)	663
Rings or Mount Included	30mm Picatinny/Weaver Rings

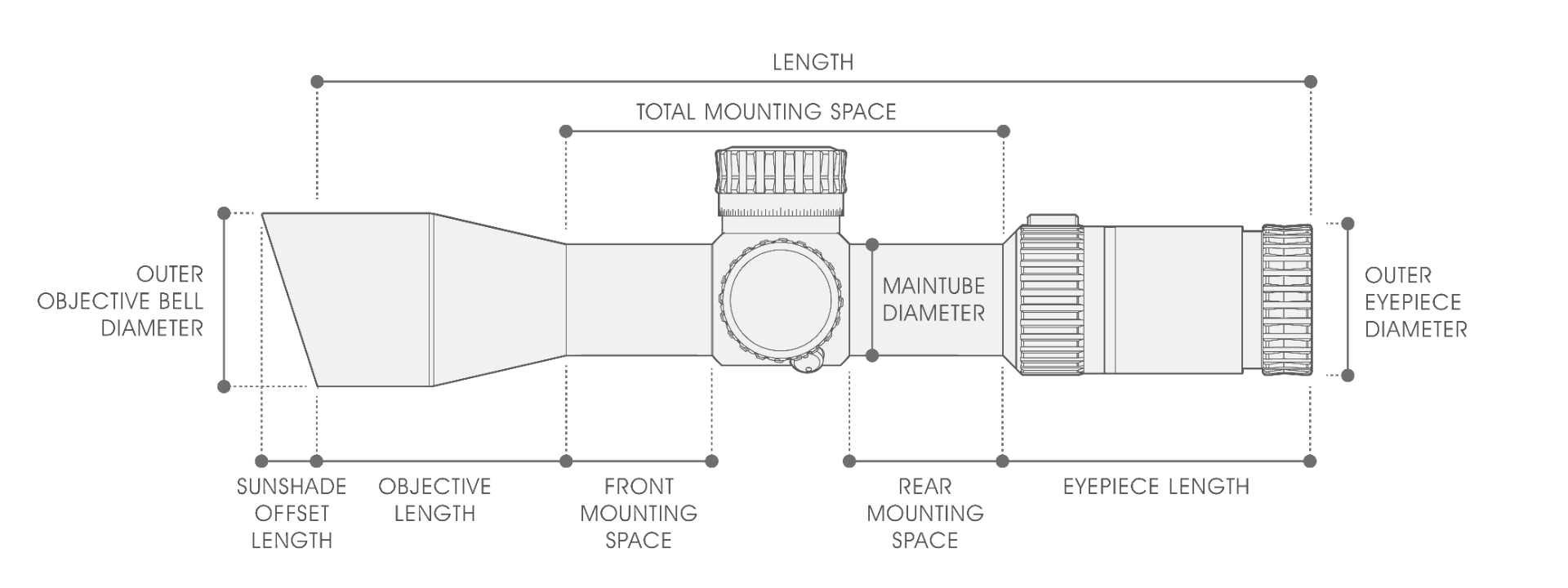

Dimensions

Eyepiece Length (in)	3.9
Eyepiece Length (mm)	98
Front Mounting Space (in)	3
Front Mounting Space (mm)	75
Length (in)	15.4
Length (mm)	390
Maintube Diameter (mm/in)	30 mm
Objective Length (in)	3.7
Objective Length (mm)	95
Outer Eyepiece Diameter (in)	1.7
Outer Eyepiece Diameter (mm)	43
Outer Objective Bell Diameter (in)	2.1
Outer Objective Bell Diameter (mm)	53
Rear Mounting Space (in)	2.4
Rear Mounting Space (mm)	62
Sunshade Offset Length (in)	1
Sunshade Offset Length (mm)	25
Total Mounting Space (in)	6.8
Total Mounting Space (mm)	172
