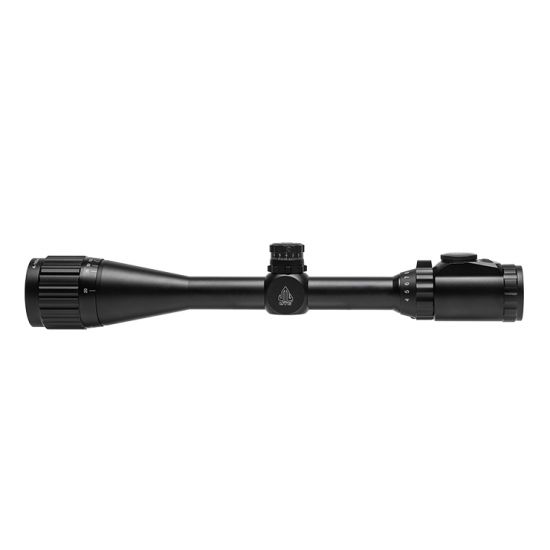

UTG® TRUE HUNTER® 4-16X40 1" Scope, AO, 36-color, Mil-dot

SKU
SCP-U4164AOIEW

UTG TRUE HUNTER 4-16X40 1" Scope, AO, 36-color, Mil-dot

in stock
$189.97
  • Best Features Designed for Varmint/Predator Hunting
  • Built on TRUE STRENGTH® Platform, Completely Sealed and Nitrogen Filled, Shockproof, Fogproof and Rainproof
  • Innovative EZ-TAP® Illumination Enhancing (IE®) System with Red/Green Dual-Color Mode and 36 Color Multi-Color Mode to Accommodate All Weather/Light Conditions (US PAT. 8437079; EU PAT. EP2520894)
  • 1-Click High-tech Illumination Memory Feature Gets You Right Back to the Color/Brightness Setting Last Used
  • Premium Zero Locking and Zero Resetting Target Turrets with Most Consistent and Precise 1/4 MOA per Click Windage/Elevation Adjustment
  • Emerald Coated Lenses to Achieve Maximum Light Transmission for Best Clarity
  • Mil-dot Range Estimating Reticle for Most Optimal Aiming and Shooting Performance
  • Parallax Adjustable from 5 Yds Close Range to Infinity
  • Complete with RGWM-25H4 Picatinny/Weaver Rings and High Quality Flip-open Lens Caps
  • EU PAT. EP2520894,US PAT. 8437079



INNOVATIVE TRUE STRENGTH TS PLATFORM

History, development, & technology

TS, as in True Strength®, is the signature scope construction platform of Leapers UTG® optics. As the name suggests, no matter if it's a full size or compact scope, magnifier or dot sight, we aim to achieve the highest dependability starting at the heart of our scopes' structure. The research and development of this innovative structure was initiated in 2001 and in 2002 the first TS Platform scope was put into mass production. With our continuous testing, verification, and multiple rounds of improvement, we started promoting and selling TS optics on a global scale in 2005. Today, all our optics are built on the tough TS Platform to include a one-piece integral aluminum main tube, meticulously placed reinforcements at key structural points, and nitrogen purging to achieve optimal rainproof, fogproof, and shockproof performance even in the most challenging of scenarios. This superior TS Platform has even been adopted into the lineup of UTG® laser products, giving them precise and secure adjustment.

SMART SPHERICAL STRUCTURE

  • The Smart Spherical Structure (SSS) is one of the most significant characteristics of the TS Platform.
  • SSS simulates the human joint structure to achieve the utmost precision and reliability.
  • The erector tube is constrained via a ball and socket structural relationship, which provides the desirable flexibility to respond to windage and elevation adjustments and the optimal ability to hold zero under heavy recoil.

TRUE STRENGTH® PLATFORM

  • Reduces and Absorbs Recoil, Alleviating Potential Loss of Zero
  • Fully Tested on Both Air Rifles and Firearms
  • TS Technology Implemented in Every Leapers Scope

ADVANCED RECOIL PROOF SYSTEM

  • The Most Advanced and User-friendly Windage and Elevation Adjustment System with Innovative Design, Precision Components, and Disciplined Assembly
  • UTG®'s Leaf Spring System is Made from a Special Heat Treated Beryllium Bronze Alloy to Maintain Reliable and Consistent Long Term Tension
  • ACCUSHOT® Models Equipped with a Rugged Coil Erector Return Spring System For Improved Zero Hold Under Heavy Recoil and Greater Windage/Elevation Adjustment Range

IE 36-COLOR ILLUMINATION ENHANCING TECHNOLOGY

  • Low profile illumination control housing with reinforced circuitry prevents intermittent reticle illumination enven under the heaviest of recoil
  • Red & Green dual-color and 36 multi-color modes to accommodate all weather & light conditions
  • 1-click illumination memory returns the user to the last color & brightness setting used
  • Green low power consumption technology with automatic 1 hour shut-off

  COLOR INDEX TABLE

  EZ-TAP ILLUMINATION ADJUSTMENT

Turn On/Off
  1. Press either the G or R button to turn on the light.
  2. Press and hold either the G or R button for 1 second to turn off the light.
  3. Light will go off after 1 hour with no action.
Operating in the RGB Mode
  1. Press the R button to turn the red light on or to change brightness of the red light.
  2.  Press the G button to turn the green light on or to change brightness of the green light.
Switching between RGB and Multi-Color Modes
  1. The default mode is the RGB mode.
  2. To switch between the RGB mode and the Multi-Color mode, press and hold BOTH G & R buttons at the same time for 1 second.
Operating in Multi-Color Mode
  1. Press the R button to change the color between the selections in the Color Index Table.
  2. Press the G button to change the color intensity as shown in the Color Index Table.


WIRE MIL-DOT RETICLE

The crosshair has multiple dots spread equally along the X and Y axis. The distance between two adjacent marks subtends to 1 milli-radian. The traditional wire reticle is robust and holds up against strong recoil and offers a clear aiming reference without compromise.


RANGE ESTIMATING SCOPE

Leapers/UTG started introducing mil-dot reticle optics from as early as 2003, pioneering the Range Estimating concept as a useful tool for hunters and shooters around the world. Today, mil-dot reticle is widely accepted and used in this industry. Leveraging our years of experience in this area, we developed and refined the unique Tactical Range Estimating(TRE) mil-dot reticle and offer this feature in almost all of our optics. With some patient learning and practice using our TRE, shooters can enhance accuracy and performance in ways not imagined before.

9 Dot TRE Mil-Dot:
Nine dots are featured spanning each side of the reticle's origin in the left, right, up, and down directions. These provide 18 points of aim across for both windage and elevation. When including the reticle's origin and the inner edges of the reticle's outer duplex a total of 21 points of aim are available.


6 Dot TRE Mil-Dot:
Six dots are featured spanning each side of the reticle's origin in the left, right, up, and down directions. These provide 12 points of aim across for both windage and elevation. When including the reticle's origin and the inner edges of the reticle's outer duplex a total of 15 points of aim are available.


4 DOT TRE Mil-Dot:
Four dots are featured spanning each side of the reticle's origin in the left, right, up, and down directions. These provide 8 points of aim across for both windage and elevation. When including the reticle's origin and the inner edges of the reticle's outer duplex a total of 11 points of aim are available. For 4 DOT TRE Mil-dot scopes with a floating reticle, sans the outer duplex, a total of 9 points of aim are available.

MIL-DOT RANGE ESTIMATING

1. Range estimating requires common knowledge/experience about your target's actual width or height.
2. Set your scope at 10X or the proper power, depending on the scope. View the target through the scope. Place the center of the dot against one edge of the target and measure to the opposite edge of the target.

3. Once the target has been measured in mils, depending on the scope model, a formula is available to estimate the distance of the target.
4. Each scope will come with a pre-calculated mil-dot table of most used distance estimates to aid the user.

MIL-DOT RANGE ESTIMATING EXAMPLE

For example, based on past experiences, the length of a known animal from shoulder to tail is 40 inches (1.016 meters), and we see through a scope at, for example, 9X to find that the animal occupies 9 mils. Therefore, the distance can be derived from using the following formula:

Hence, (1.016 x 1,000/9) X (9/10 ) = 101.6 meters (110 yds).
Armed with this knowledge, you can compensate for the bullet’s drop accordingly and make “great things happen”!


ACCESSORIES INCLUDED

  • Allen Wrench 4mm
  • Allen Wrench 3mm
  • Hex Screw
  • Picatinny/Weaver Rings, 1 Pair
  • Flip-open Lens Caps X2
  • CR2032 3V High Energy Lithium Battery
  • Cleaning Cloth
  • Mil-Dot Chart
  • User Manual

RESOURCES

More Information
WarrantyLifetime
PatentEU PAT. EP2520894 / US PAT. 8437079
MaterialsAluminum
Surface FinishAnodized
Quick-detachableNo
Focal PlaneSFP (Second Focal Plane)
ReticleMil-Dot
Reticle TypeWire
Reticle IlluminationNo
Reticle Color(s)IE 36-Color
Illumination Toggle TypeEZ-TAP
Brightness Mode(s)Manual
Dustproof RatingIP6X
Ballistic Drop CompensationNo
Range EstimationYes
Battery LoadingRear Eyepiece
Battery TypeCR2032 3V
Click Value1/4 MOA
Windage TravelRight 30 MOA / Left 30 MOA
Total Windage60 MOA
Elevation TravelUp 30 MOA / Down 30 MOA
Total Elevation60 MOA
Magnification Max.16
Magnification Min.4
Angular FOVLow Power: 4.4° / High Power: 1.1°
Linear FOV @ 100 ydsLow Power: 23′ / High Power: 6′
Linear FOV @ 100 mLow Power: 7.7 m / High Power: 1.9 m
Eye Relief81 mm - 76 mm / 3.2 in - 3 in
Parallax ControlAdjustable Objective
Parallax4.57 m / 5 yds - Infinity
Exit Pupil10 mm - 2.5 mm
Objective Lens Diameter40 mm
Diopter Adjustment -2D ~ +2D
Diopter TypeFriction Secured
Rings or Mount Included1" Picatinny/Weaver Rings

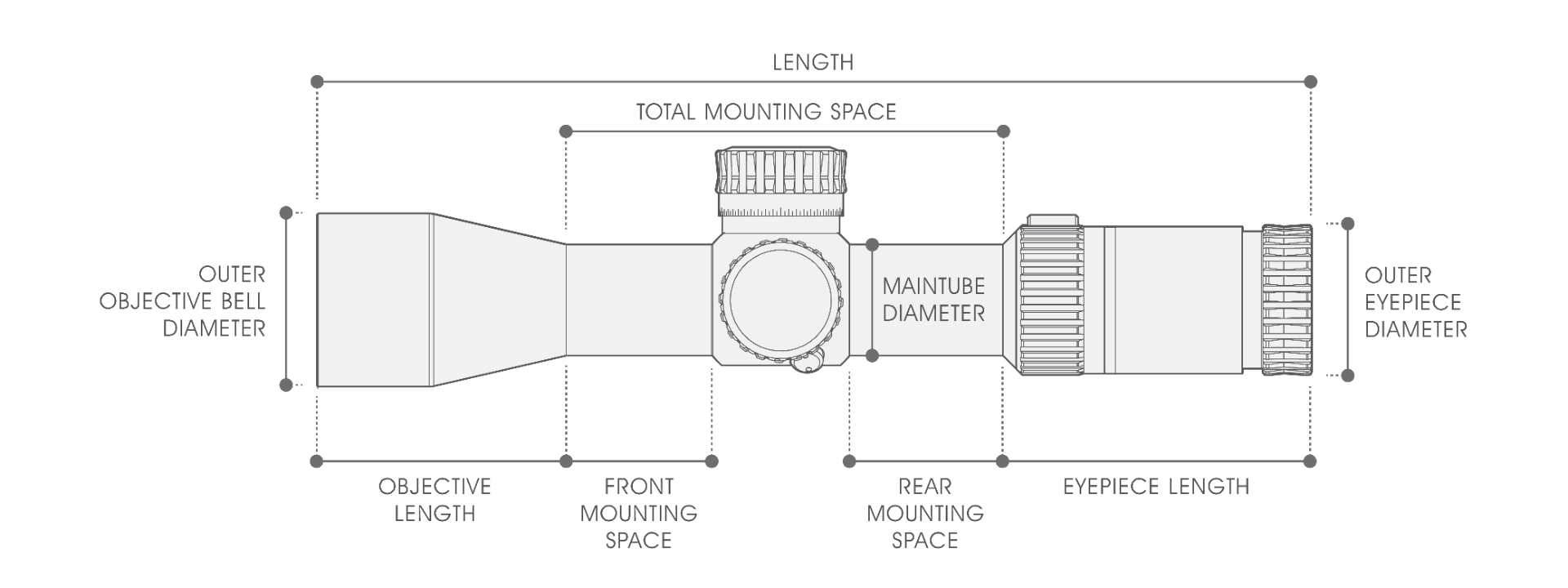

Dimensions
Eyepiece Length94 mm / 3.7 in
Front Mounting Space58 mm / 2.3 in
Length (mm/in)370 mm / 14.6 in
Maintube Dia.1 Inch
Objective Length126 mm / 5 in
Outer Eyepiece Diameter41 mm / 1.6 in
Outer Objective Bell Diameter52 mm / 2 in
Rear Mounting Space62 mm / 2.4 in
Total Mounting Space153 mm / 6 in
Weight632 g / 22.3 oz
#IMAGEDESCRIPTIONQUANTITY
1Allen Wrench 4mm1
2Allen Wrench 3mm1
3Hex Screw1
4Scope Owners Manual1
5Picatinny/Weaver Rings, 1 Pair1
6Mil-Dot Chart1
7Cleaning Cloth1
8Flip-open Lens Capsx2
9CR2032 3V High Energy Lithium Battery1

LEAPERS® LIFETIME WARRANTY

Leapers, Inc. warrants that all products conform to published specifications and are free from defects in material and workmanship. Leapers, Inc. will repair or replace, at our discretion, a defective product for the duration of the product’s lifespan. In the event of a product being discontinued, credit for the product’s MSRP may be offered.
